Firestation no. 15

Site: South Los Angeles, California



This project derives from a spring topic studio at USC that asks students to take responsibility for the community in which we live, and to design a facility that addresses the fundamental responsibilities and values of architecture while demonstrating the ability to develop the tectonic content of the project and test the performance of the proposals made.

After a careful consideration of city objectives, firefighter’s perspectives and neighborhood concerns, the design of Firestation no. 15 would aim to actively engage with the community.  The most public corner of the building (30th St. and Vermont Ave.)  is designed to welcome the community for meetings and city related issues.  The building is carved from its rectangle mass, an “L” shaped translucent circulation bar that would allow light into the entire building.  Taking into the consideration that most fire stations do not allow transparent glass due to the privacy of public figure buildings, I incorporated a facade that would serve two functions for the fire station; privacy and sustainability concerns.  The façade would act as a shading device for the eastern part of the building, as well as create privacy between pedestrians and workers on the public corridor.  The fire station also consist of staggering floors at 5’ apart in height, this strategy aims to solve the problem of height in different bays as well as enhances the visual connection between fire fighters.  These design strategies aim to achieve a comfortable, energy efficient, socially interactive work environment for the fire fighters and most importantly, a community engaging fire station for the city of Los Angeles.




 Read more

Status: School Project
Location: Los Angeles, CA, US


Entrance
Entrance
Southwest perspective (night)
Southwest perspective (night)
Conference room
Conference room
Communal kitchen
Communal kitchen
Crew dorm
Crew dorm

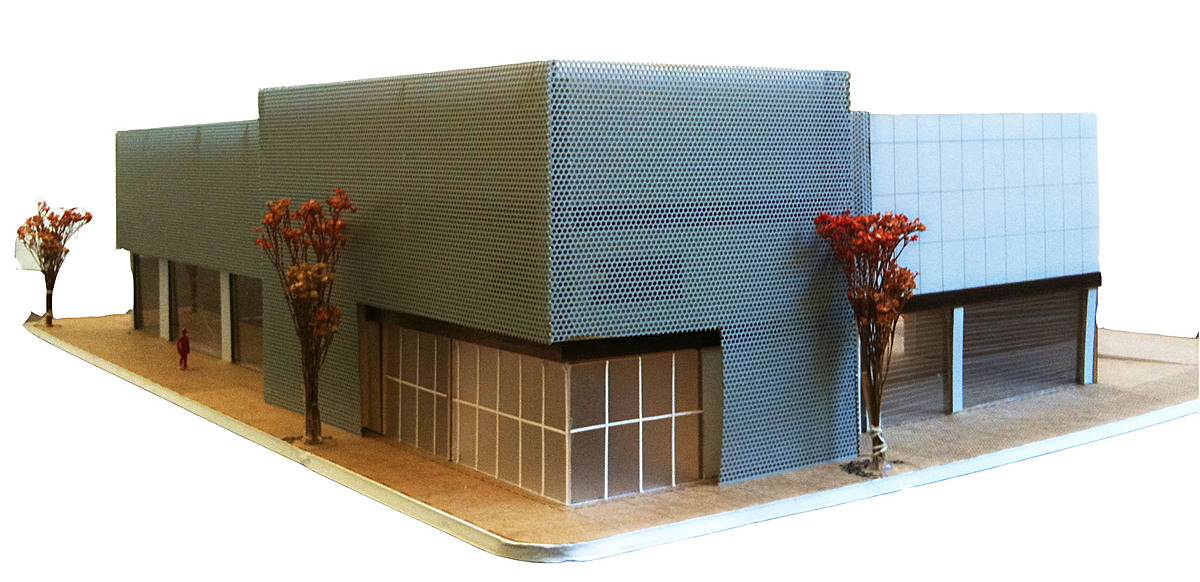

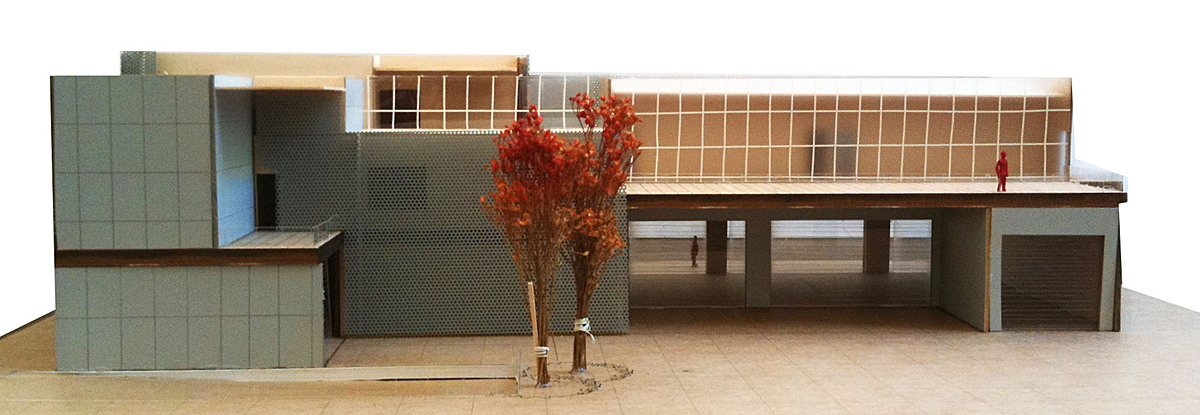

Physical model-facing Southwest
Physical model-facing Southwest
Physical model-facing east
Physical model-facing east

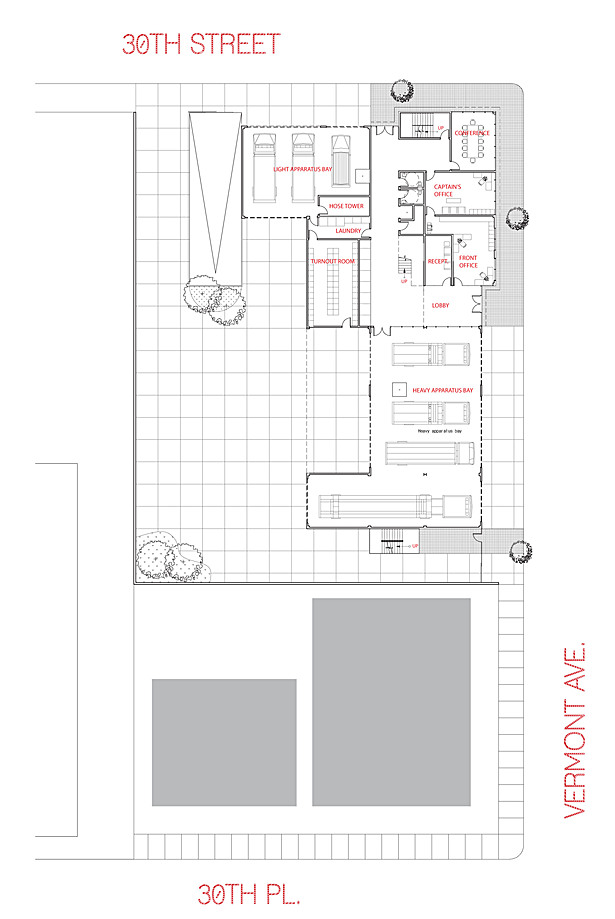

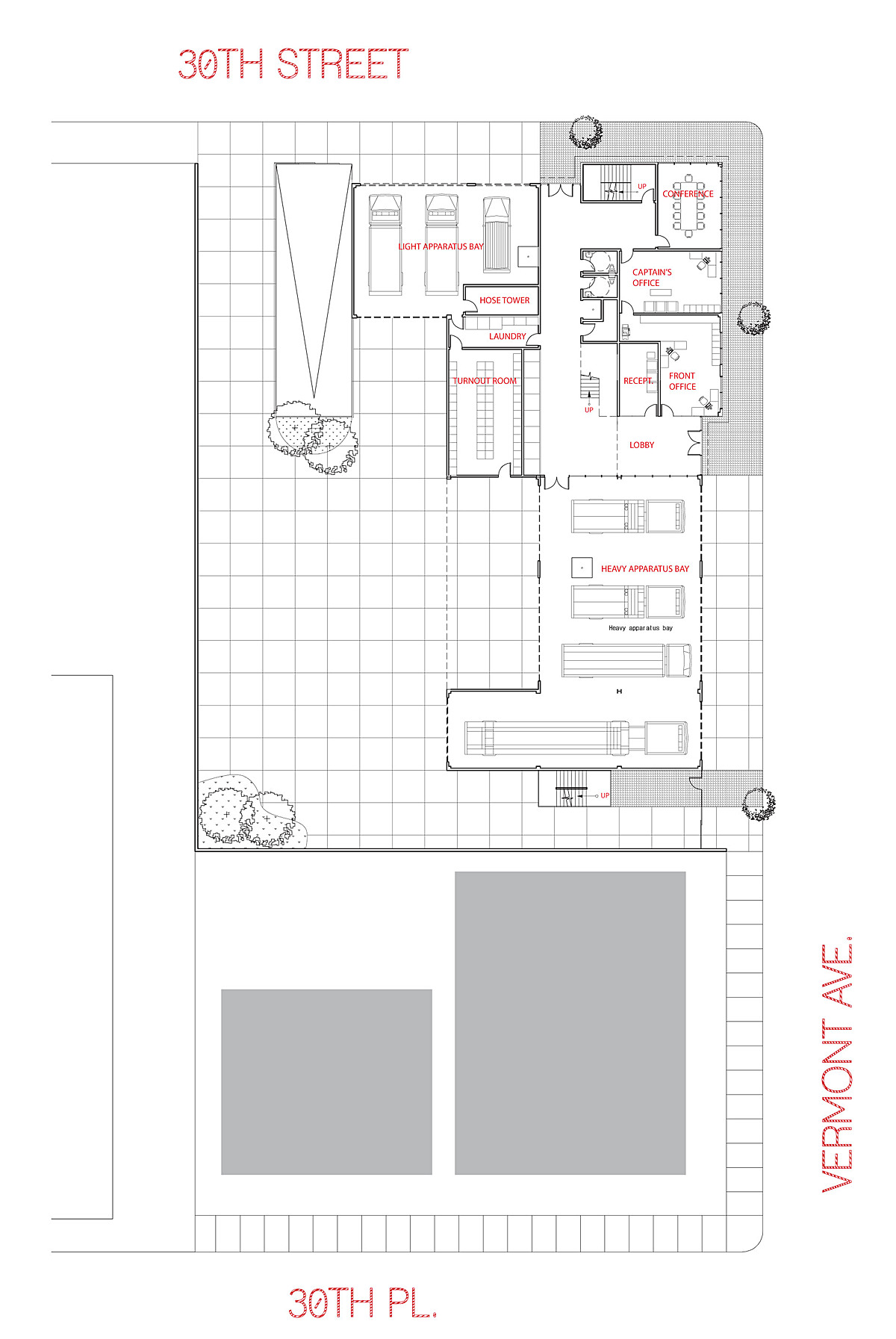

Ground plan NTS
Ground plan NTS

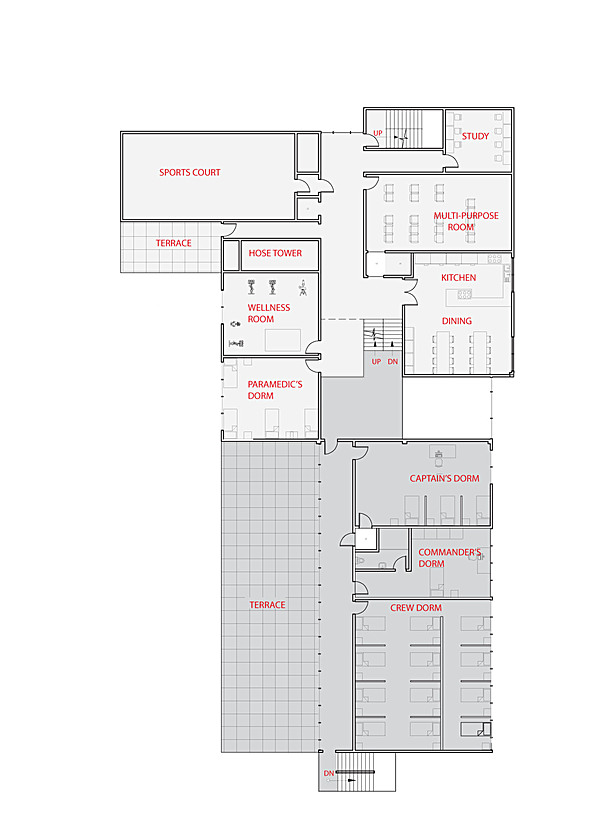

2nd floor plan NTS
2nd floor plan NTS

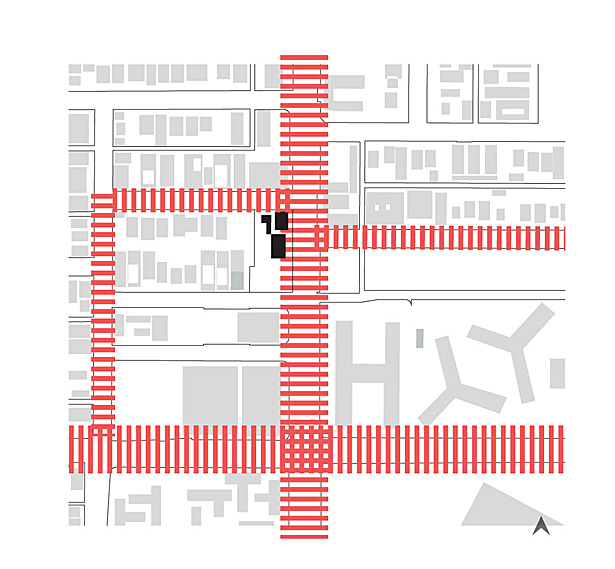

Fire truck circulation at the site level
Fire truck circulation at the site level

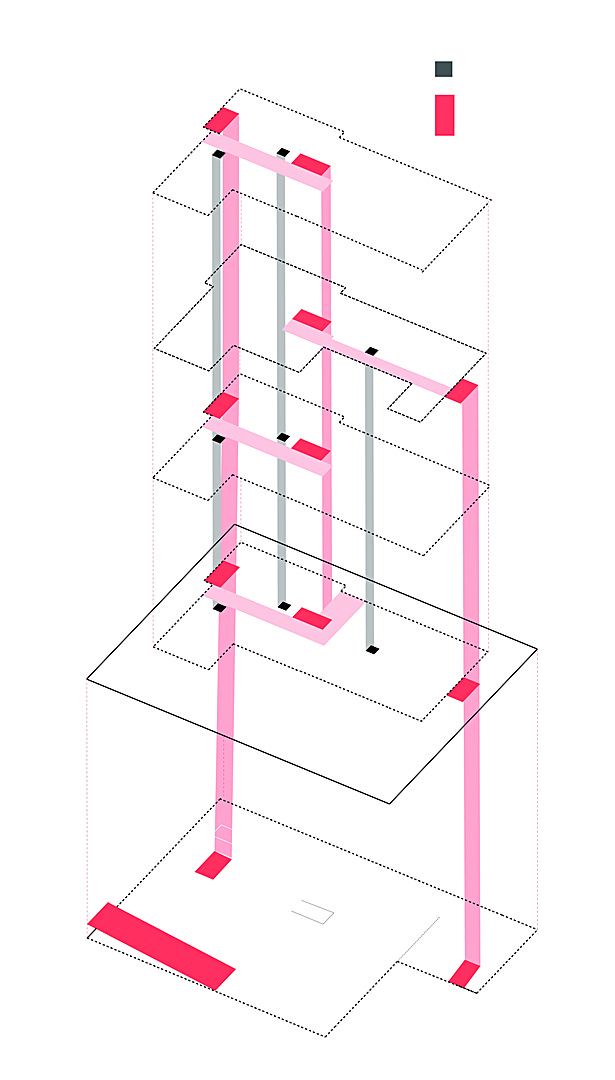

Circulation axon
Circulation axon

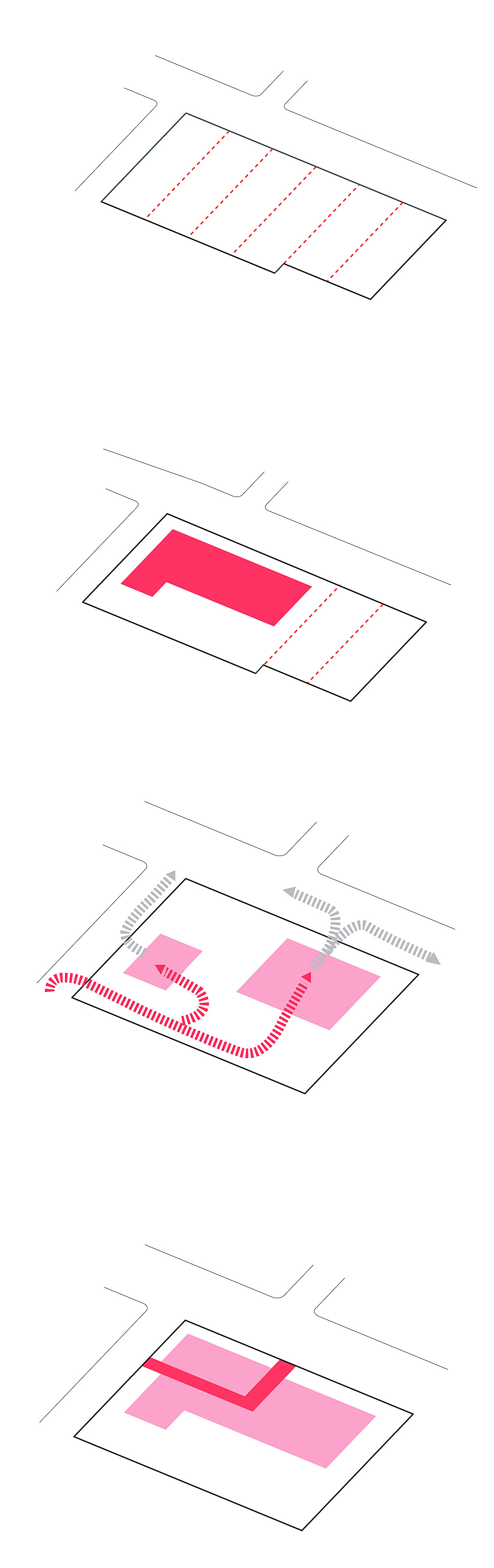

Diagrams: Lot size 35,775 square feet, Fire station takes 4 lots, Fire truck circulation, “L” shape user circulation
Diagrams: Lot size 35,775 square feet, Fire station takes 4 lots, Fire truck circulation, “L” shape user circulation

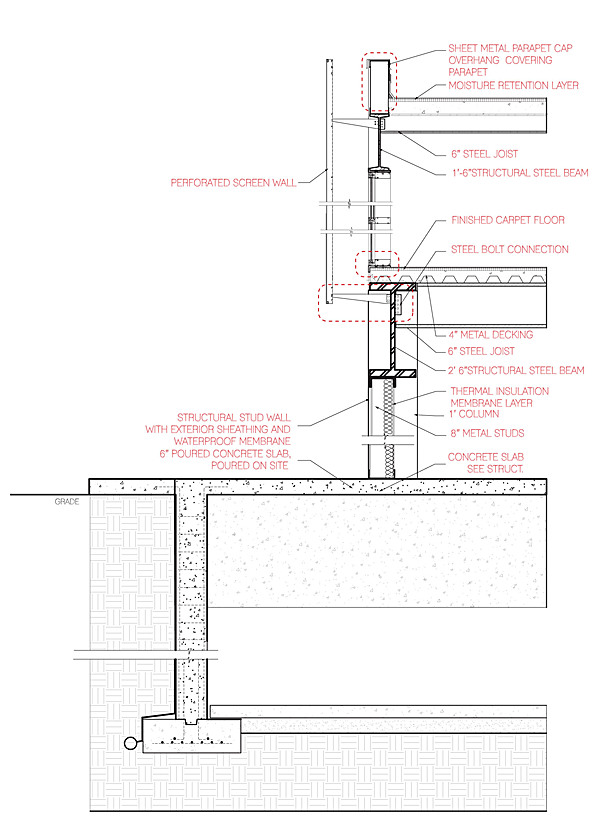

Wall connection detail
Wall connection detail

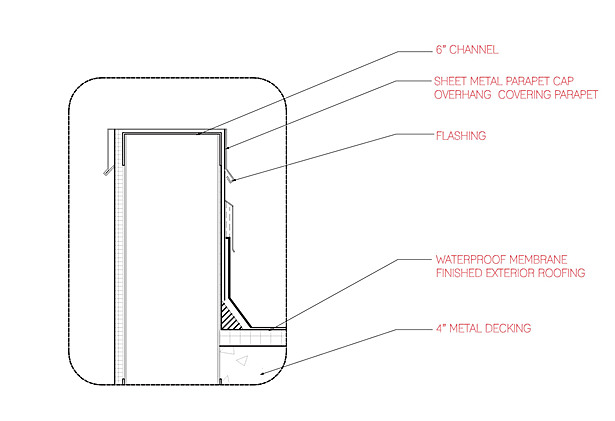

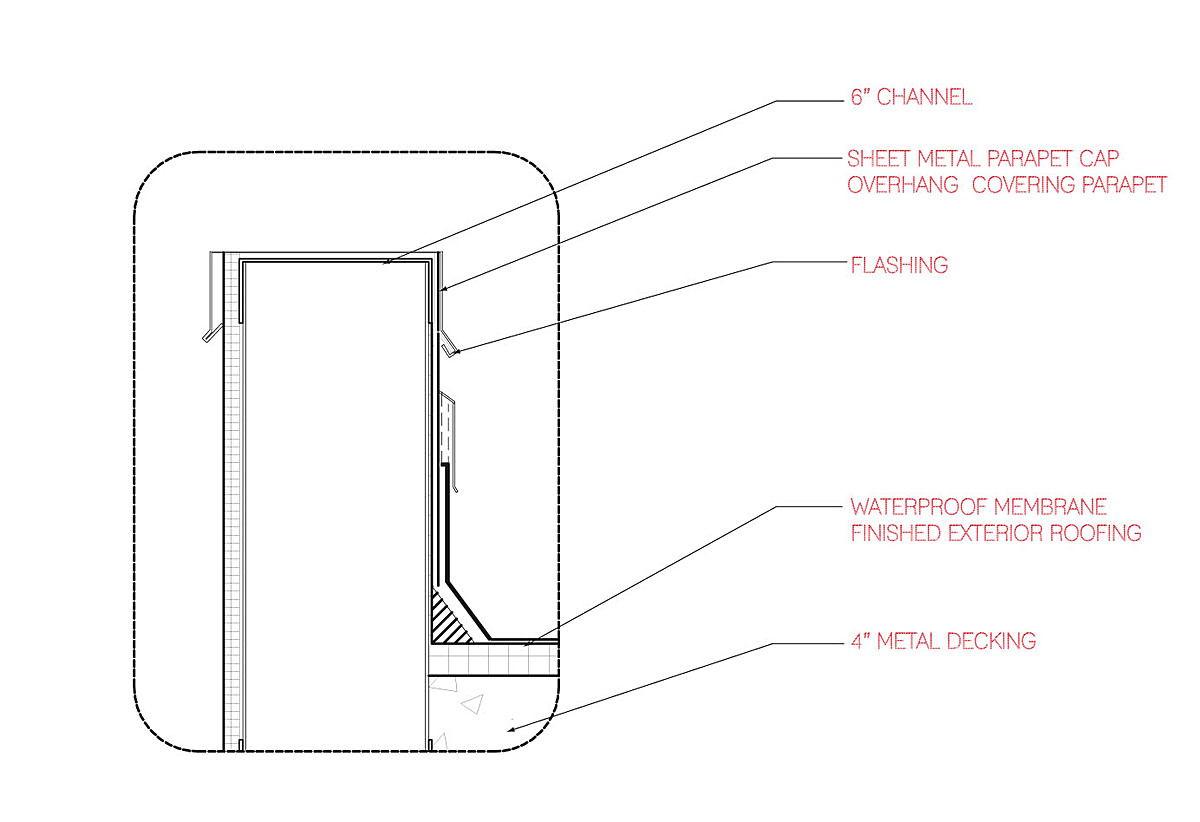

Parapet flashing detail
Parapet flashing detail

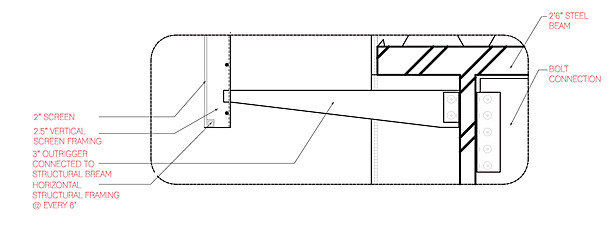

Facade screen attachment detail
Facade screen attachment detail

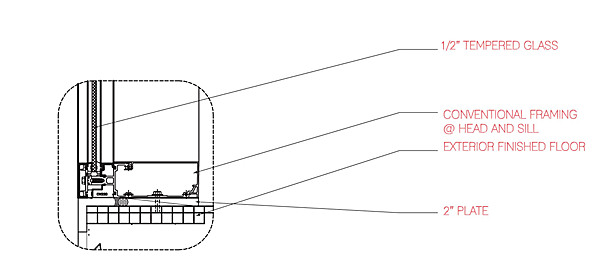

Window sill connection detail
Window sill connection detail
