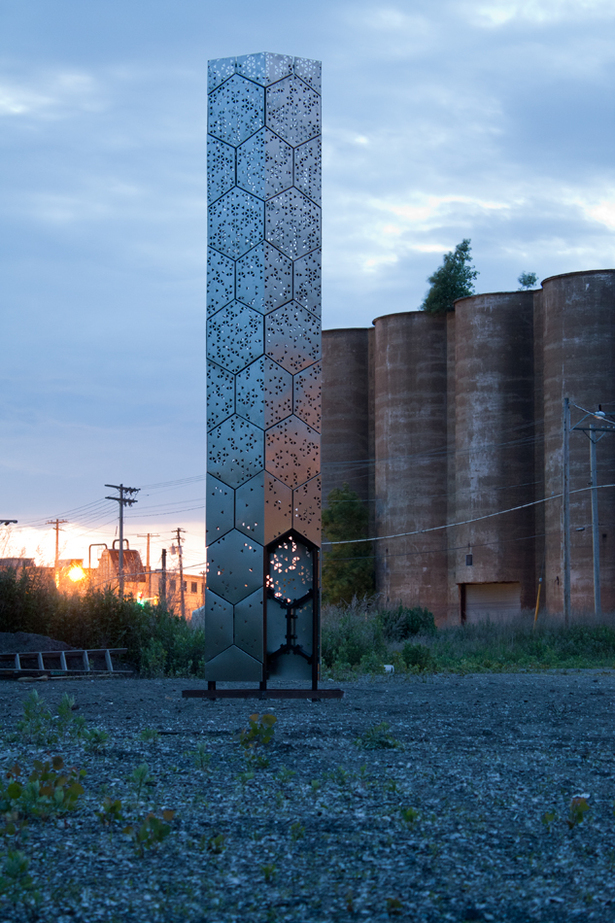

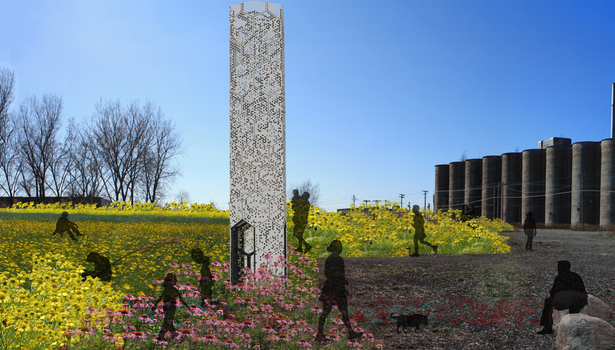

Site rendering
Site rendering
33 more images  ↓

Hive City

Elevator B is a collaborative project between graduate students from the University at Buffalo’s School of Architecture and Planning and Rigidized Metals, a Buffalo based building material manufacturer. The overall goal of the project was to successfully design for the relocation and habitation of a colony of honeybees occupying a building at Silo City, a dense cluster of grain elevators in Buffalo, NY.  Elevator B was selected from a group of ten entries by a mixed panel of jurors, who represented Rigidized Metals, the fields of architecture and planning, and the bees.

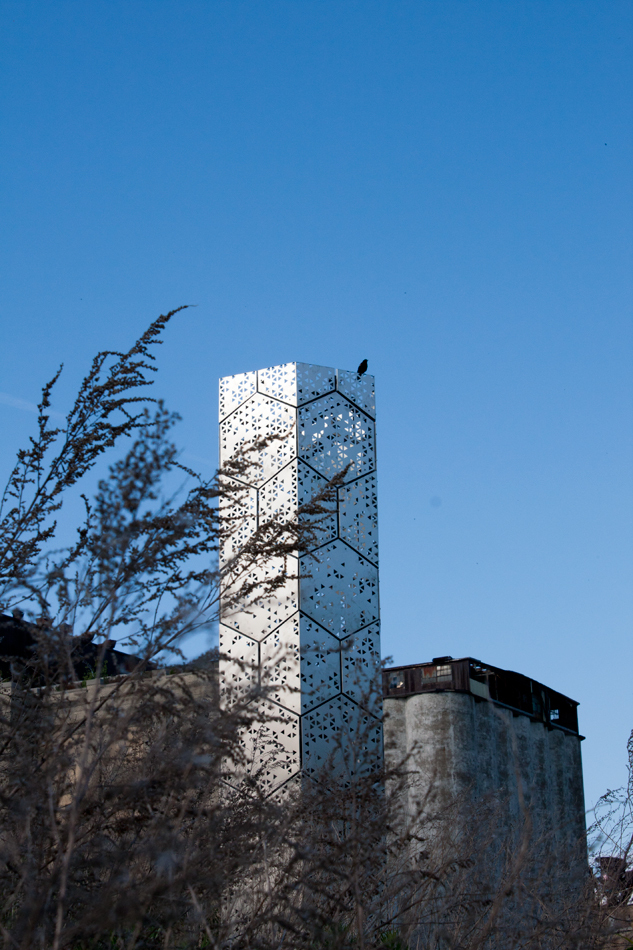

Elevator B is an iconic gesture of the regeneration of Silo City, both naturally and economically.  The material properties of the tower represent the cluster of material manufactures now located around the site while housing the colony of bees. Visitors enter the tower from below and look up, similar to the way one experiences the silos and bins of the nearby Marine A elevator.

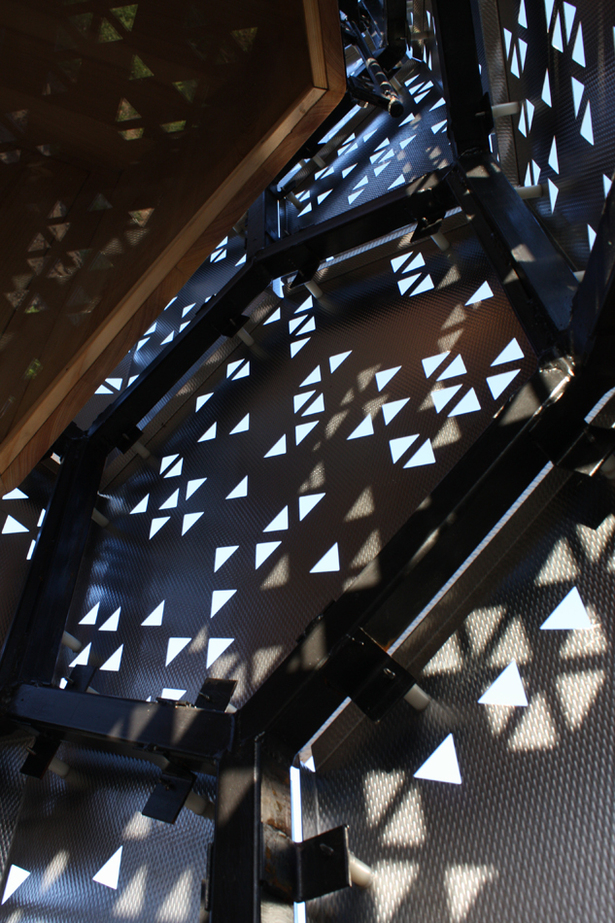

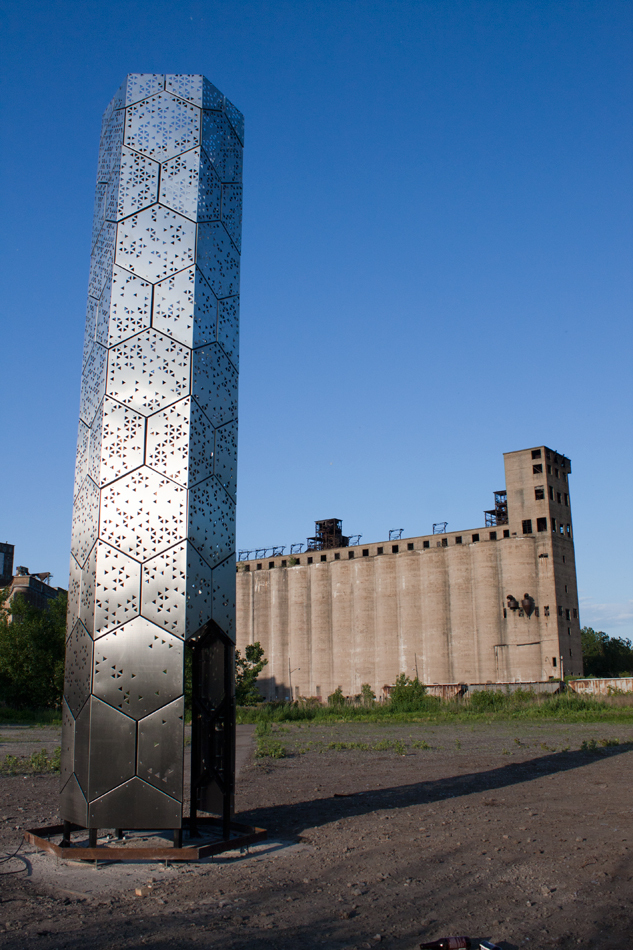

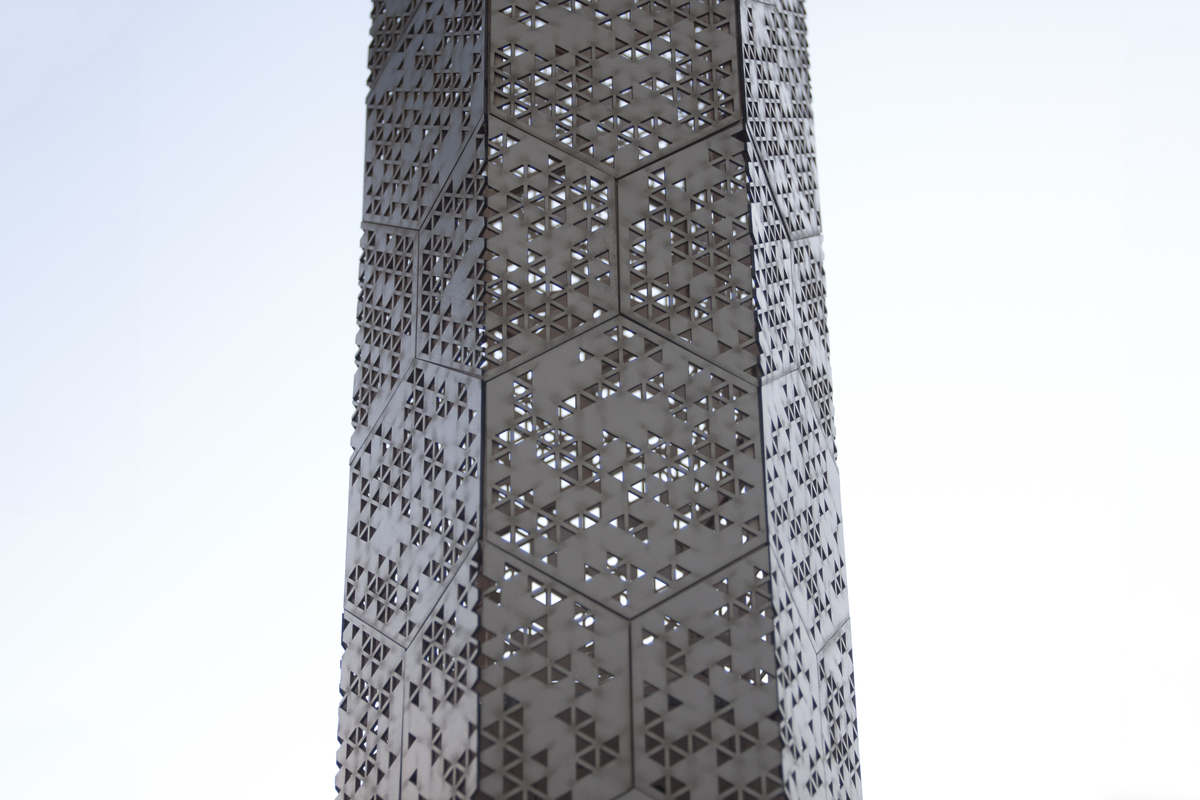

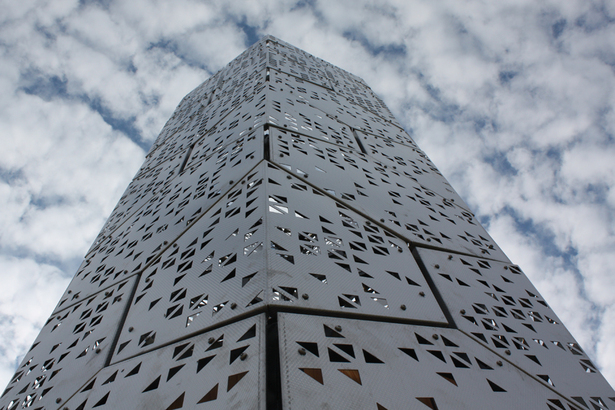

The 22’ tall honeycombed steel structure was designed and built utilizing standard steel angle and tube sections.  The structure is sheathed in perforated stainless steel panels that were designed to protect the hive and visitors from the wind, and allow for solar gain and shading. The bees are housed in a hexagonal cypress box with a laminated glass bottom through which the bees can be observed. This provides protection, warmth and separates entry access between bees and humans.  Professional beekeepers gain access to the hive by lowering it, which allows them to ensure the health and safety of the bees.  This feature also caters to school groups that will visit the site allowing children to get a close up view.   The tower’s orientation also frames key views of the surrounding historic grain elevators and the new upcoming developments of Silo City.


The construction phase started May 14th at the University at Buffalo Material and Methods Shop.  The exterior metal panels were developed by the team in coordination with and fabricated by the project sponsor, Rigidized Metals.  The entire project was fabricated and installed by the team of students and was completed in the beginning of June. The bees were relocated into the tower on June 8th and have been rapidly building honeycomb inside their new home.

View progress documentation on our blog: hivecity.wordpress.com


 Read more

Status: Built
Location: Buffalo, NY
My Role: Designer/Fabricator/Blogger
Additional Credits: Design and Fabrication Team Members:
Courtney Creenan, Daniel Nead, Scott Selin, Lisa Stern

Fabrication Assistant:
Brian Fentzke

Faculty Advisors:
Martha Bohm - Assistant Professor
Joyce Hwang - Assistant Professor
Christopher Romano - Clinical Assistant Professor

Consultants:
Philip Barr - Beekeeper
Peter Grace - Structural engineer
Mark Bajorek - Structural engineer
Alex Poklinkowski – Beekeeper

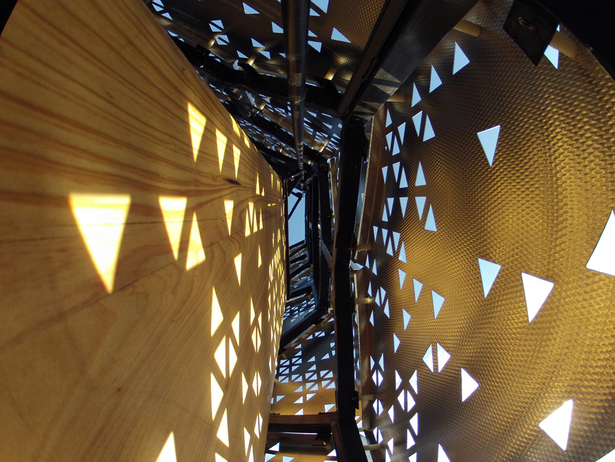

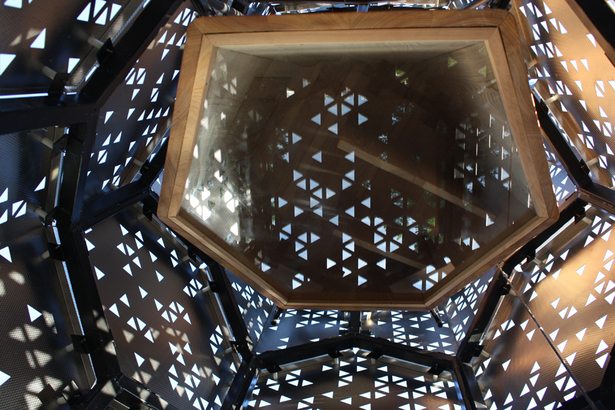

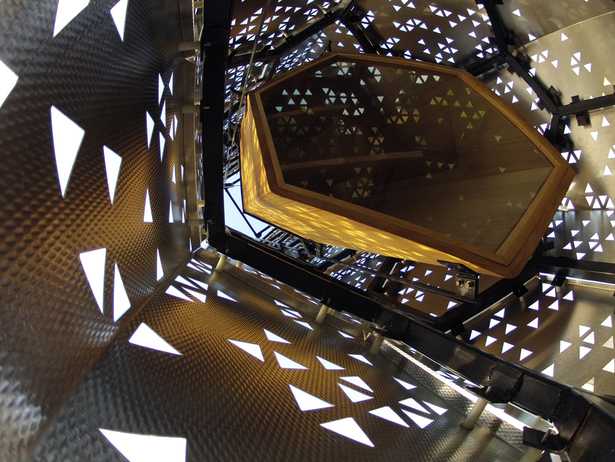

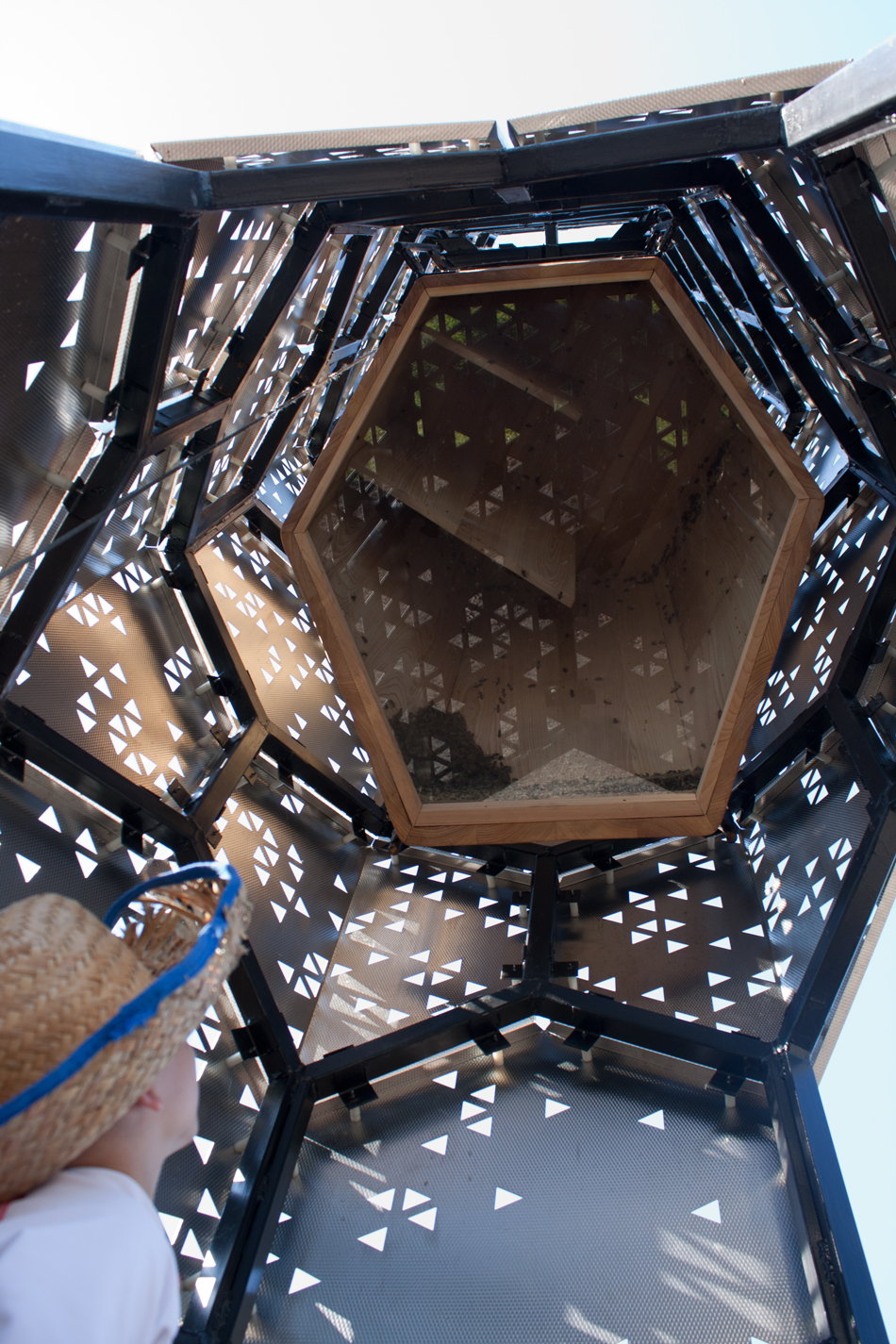

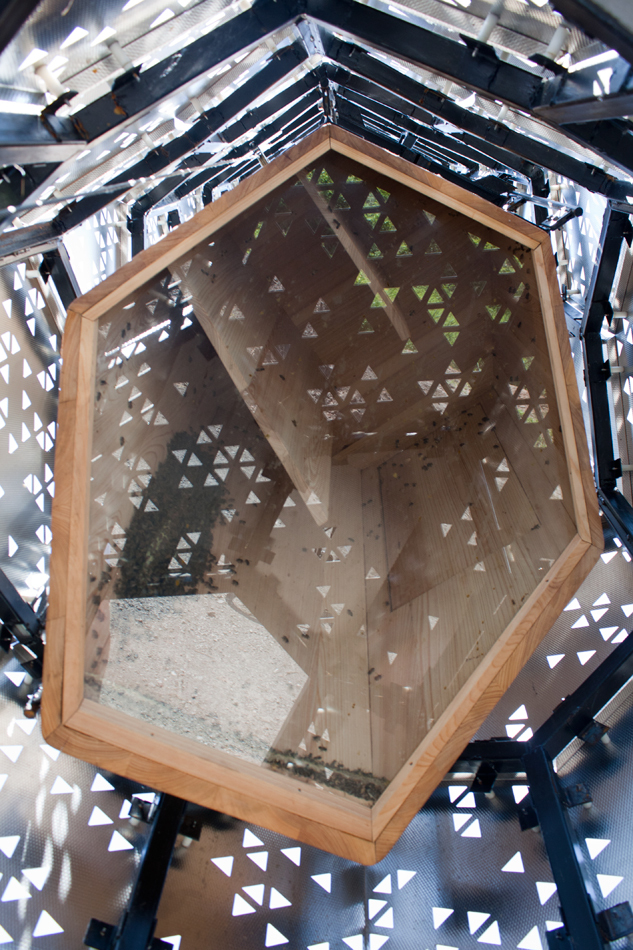

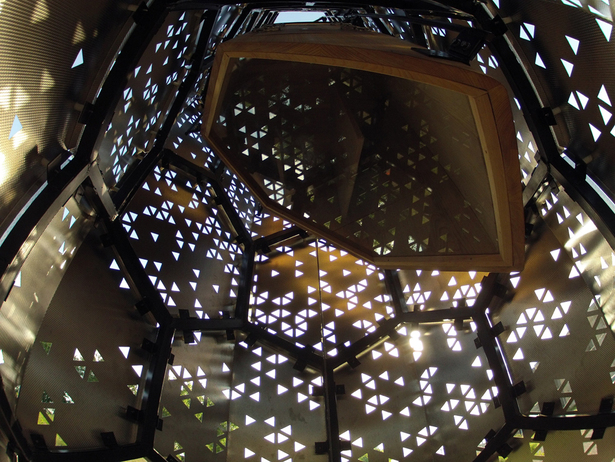

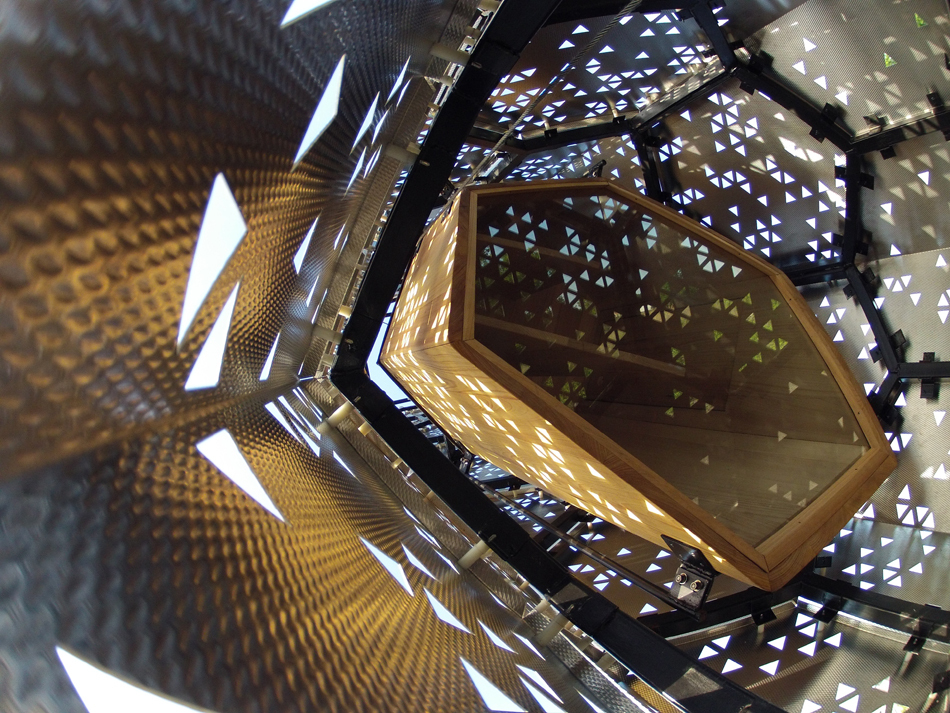

View into tower
View into tower

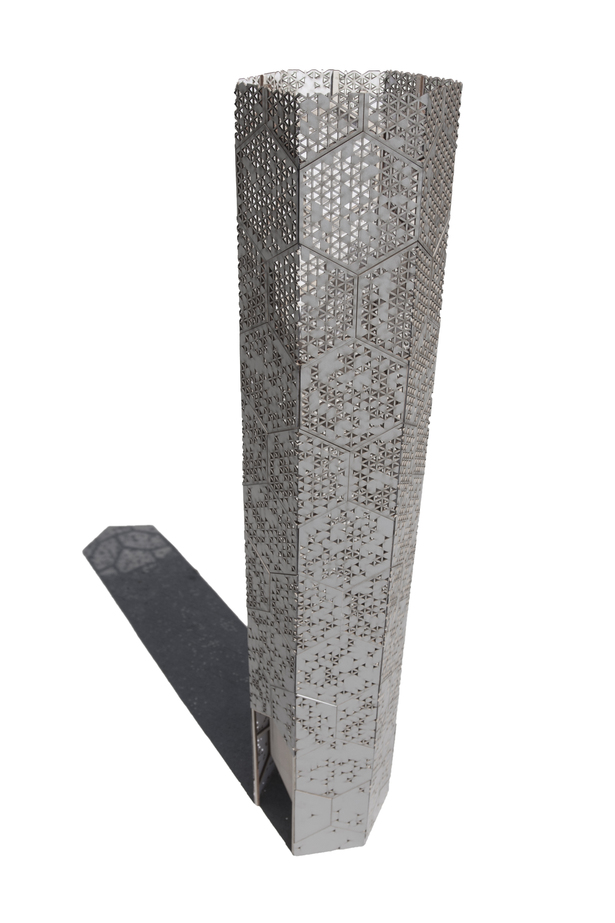

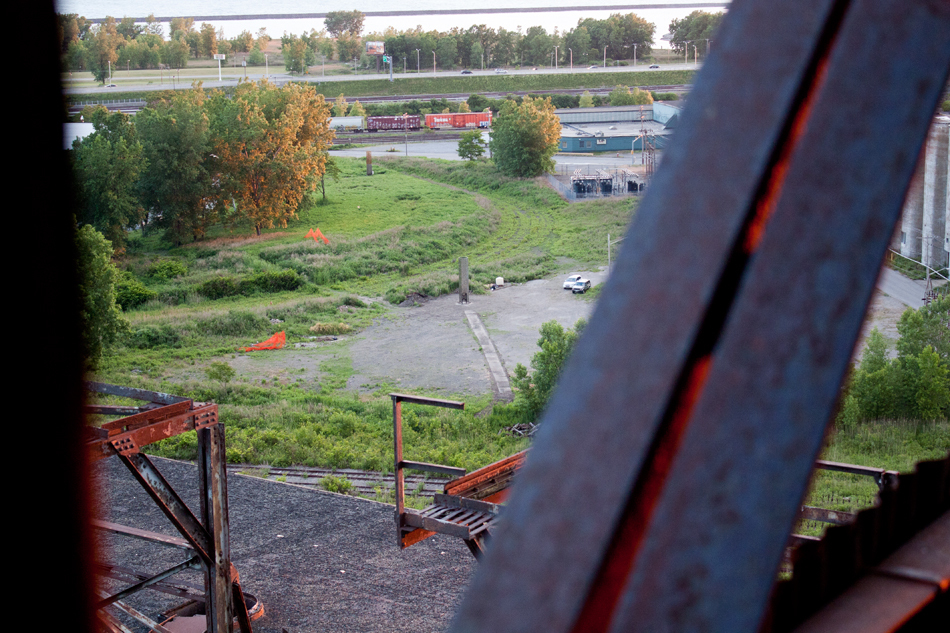

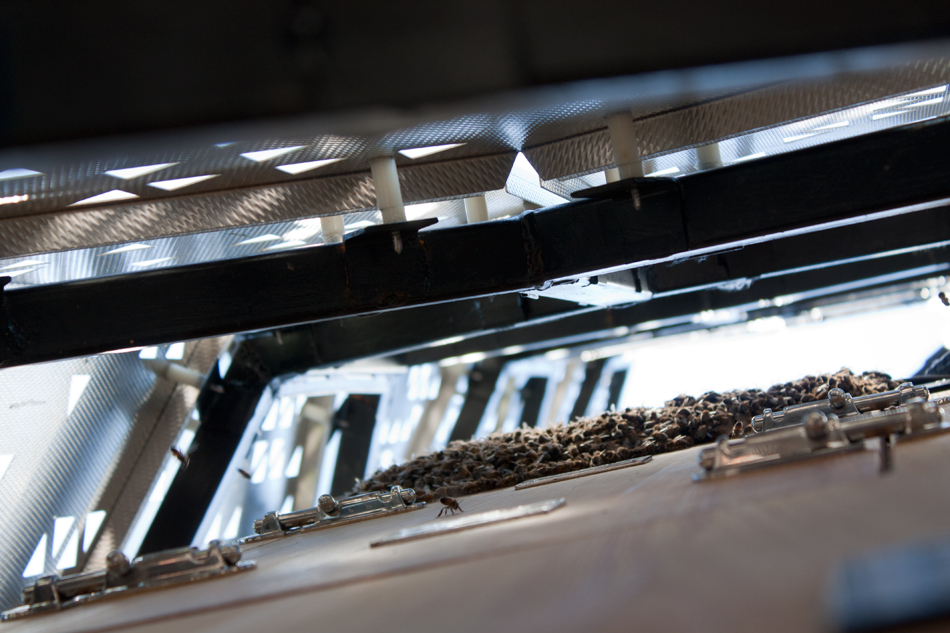

Bee's eye view
Bee's eye view
Model
Model

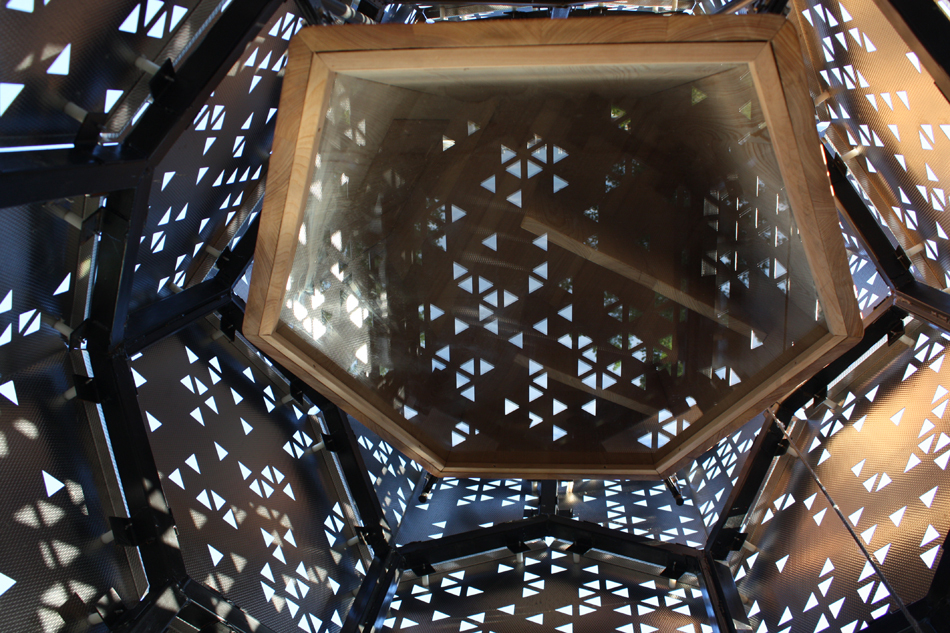

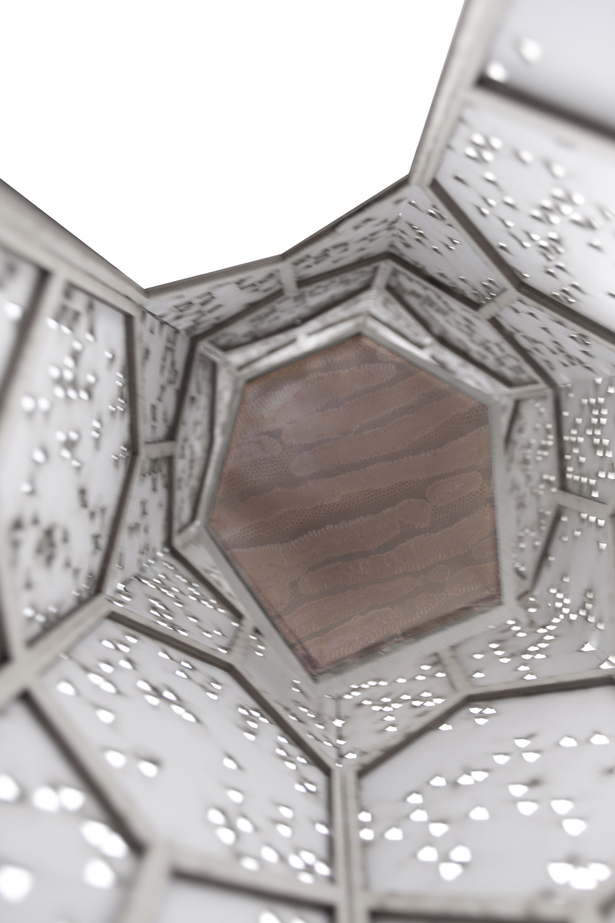

View into tower
View into tower

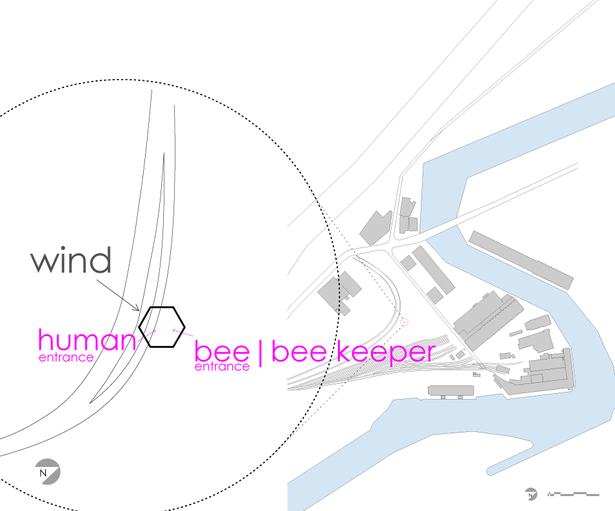

Site Plan
Site Plan

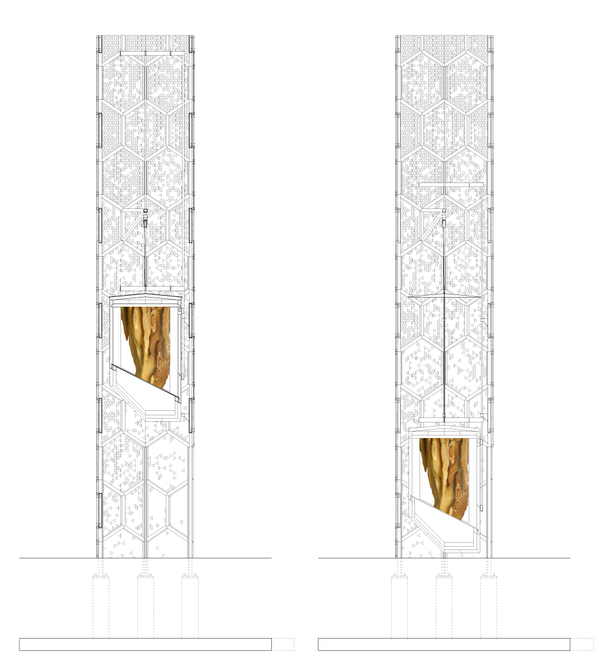

Sections of tower
Sections of tower

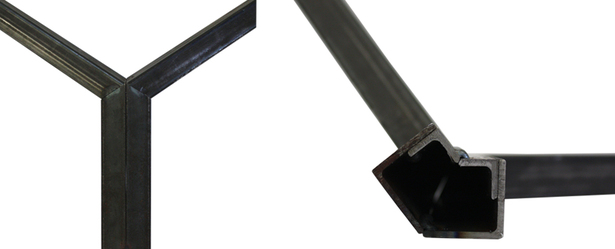

Full scale structure model
Full scale structure model

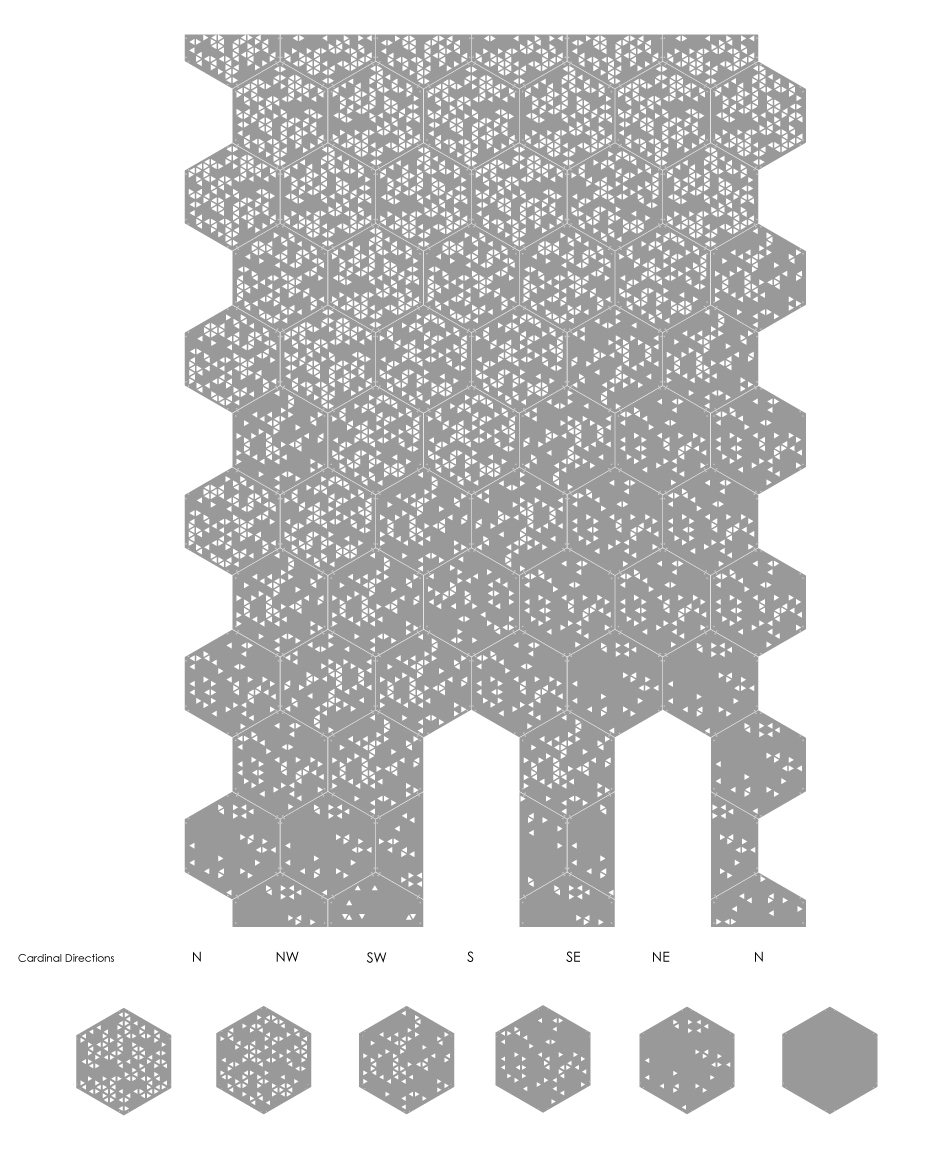

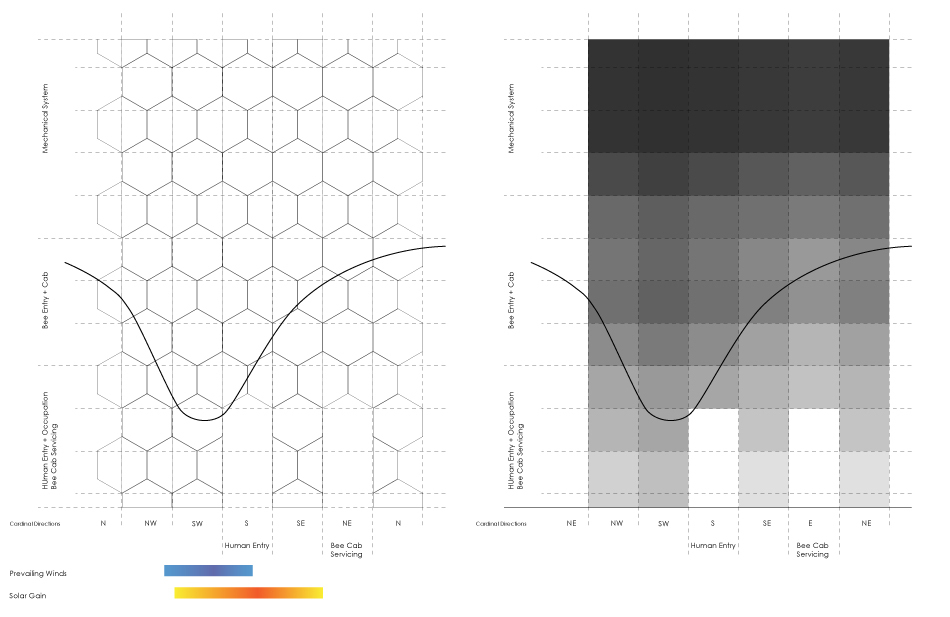

Panel perforation diagram
Panel perforation diagram
Unrolled panel elevation
Unrolled panel elevation

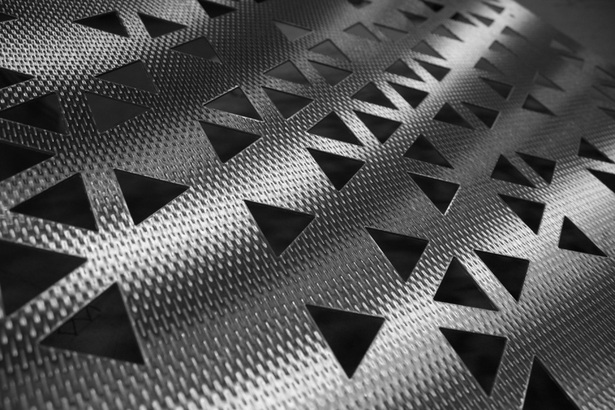

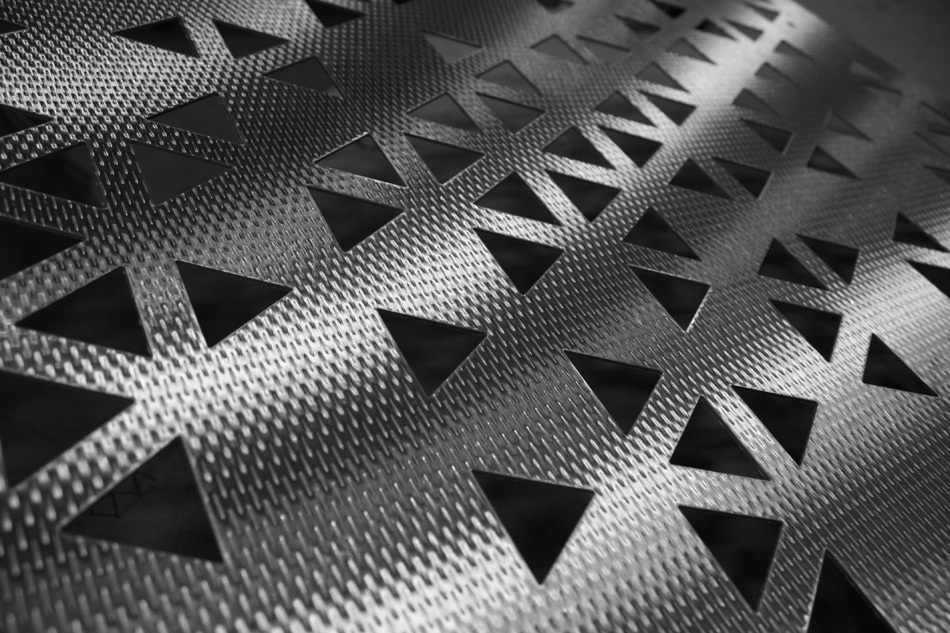

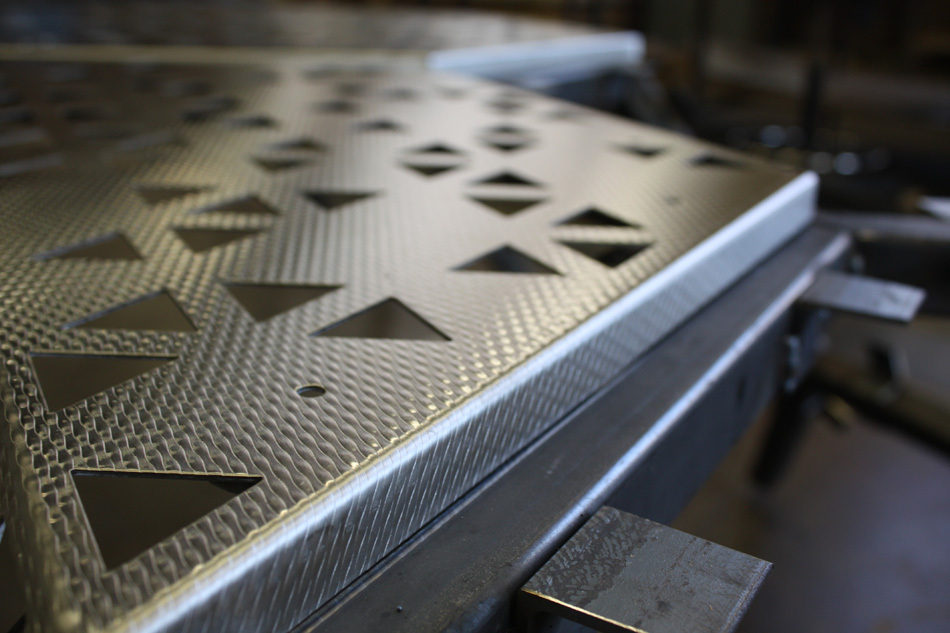

Cut Rigidized 5.WL Panel
Cut Rigidized 5.WL Panel
Test panels on frame
Test panels on frame

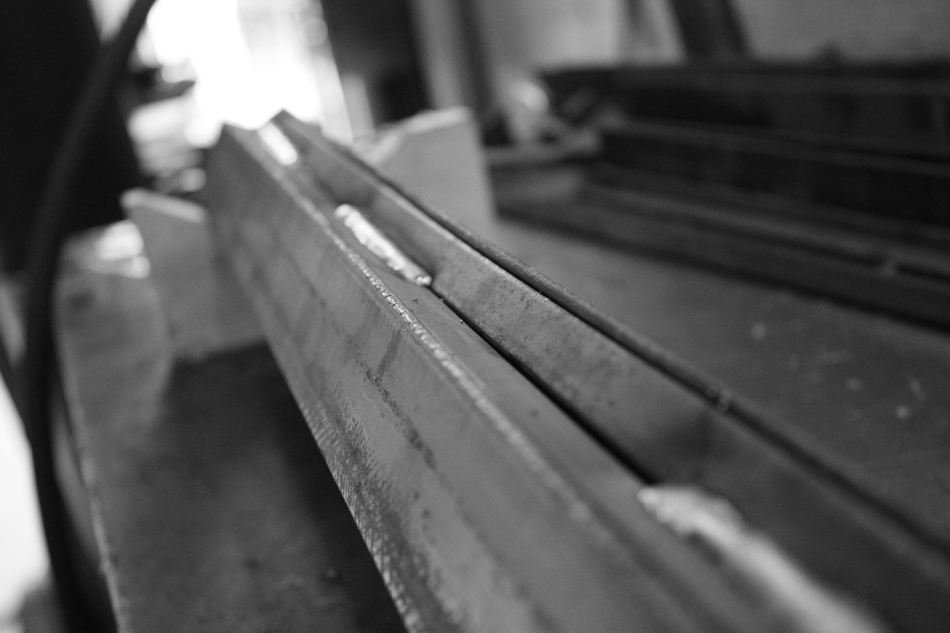

Welded corner column
Welded corner column

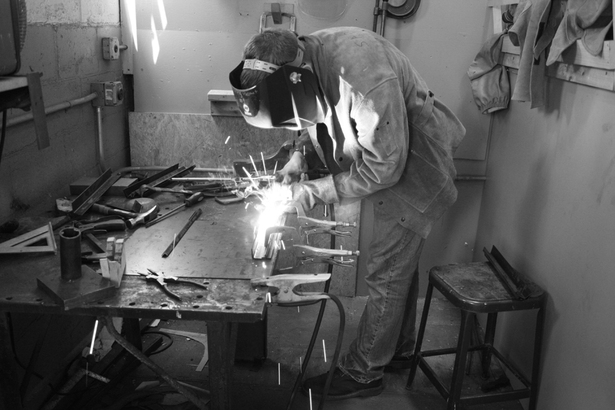

Welding the corner columns
Welding the corner columns

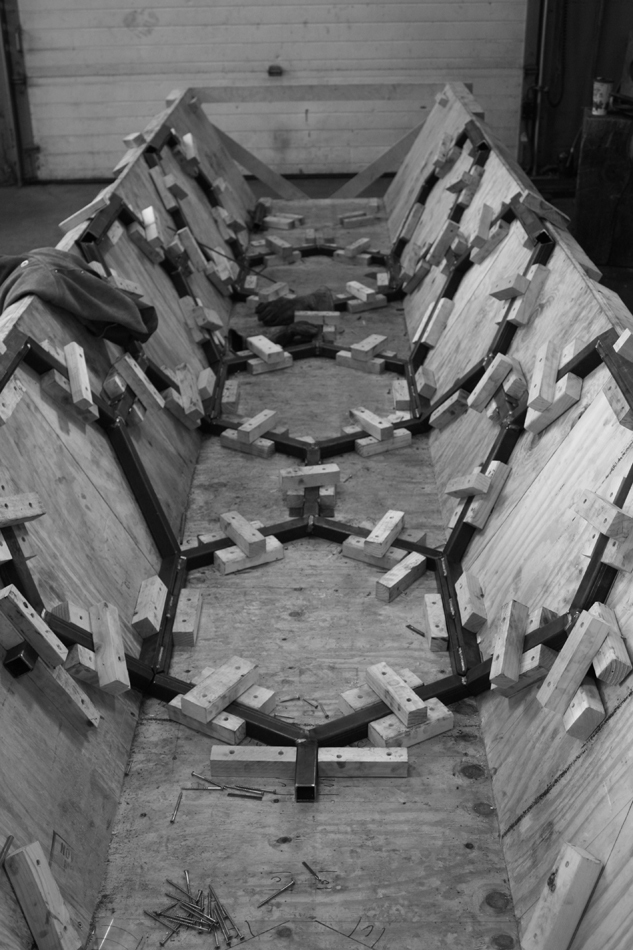

Steel structure in welding jig
Steel structure in welding jig
Portion of completed tower
Portion of completed tower

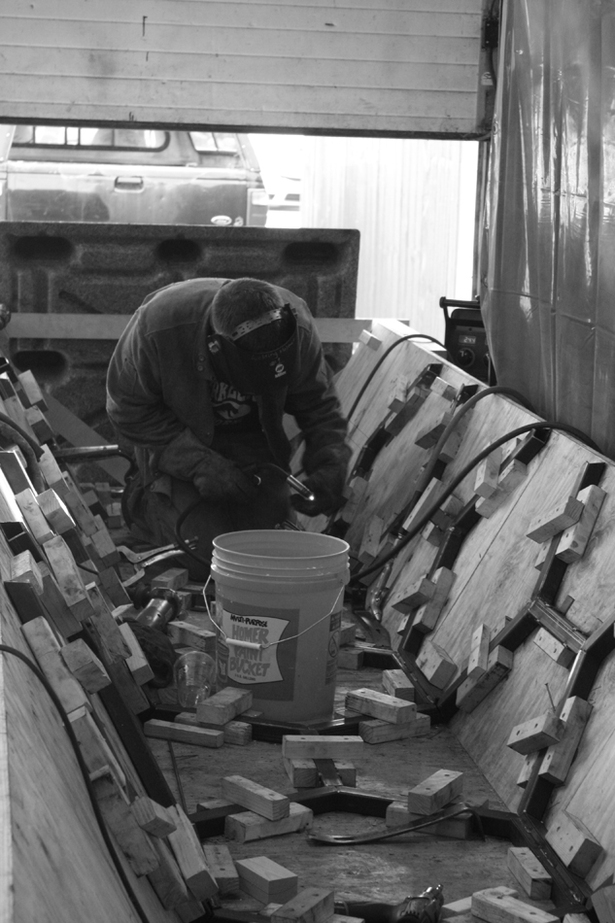

Welding in the jig
Welding in the jig

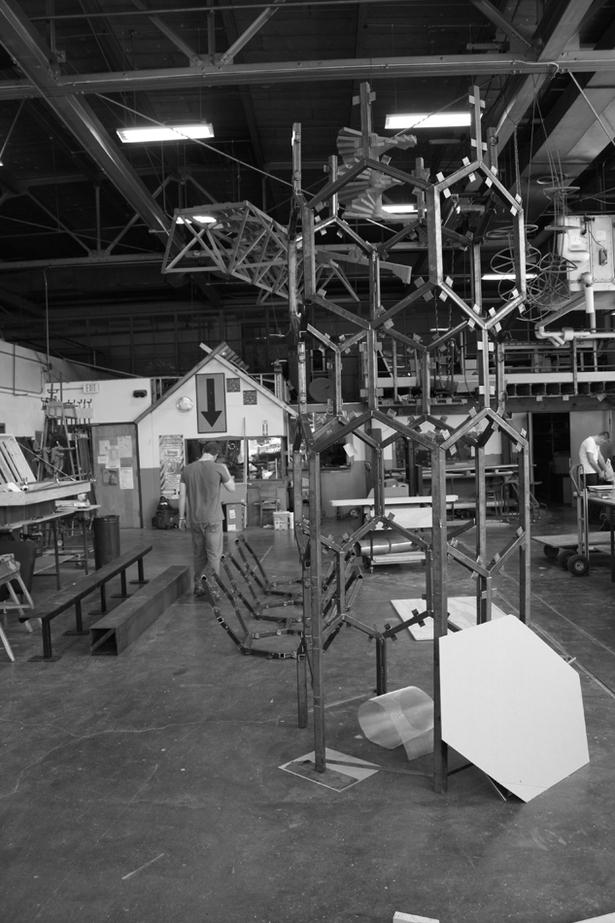

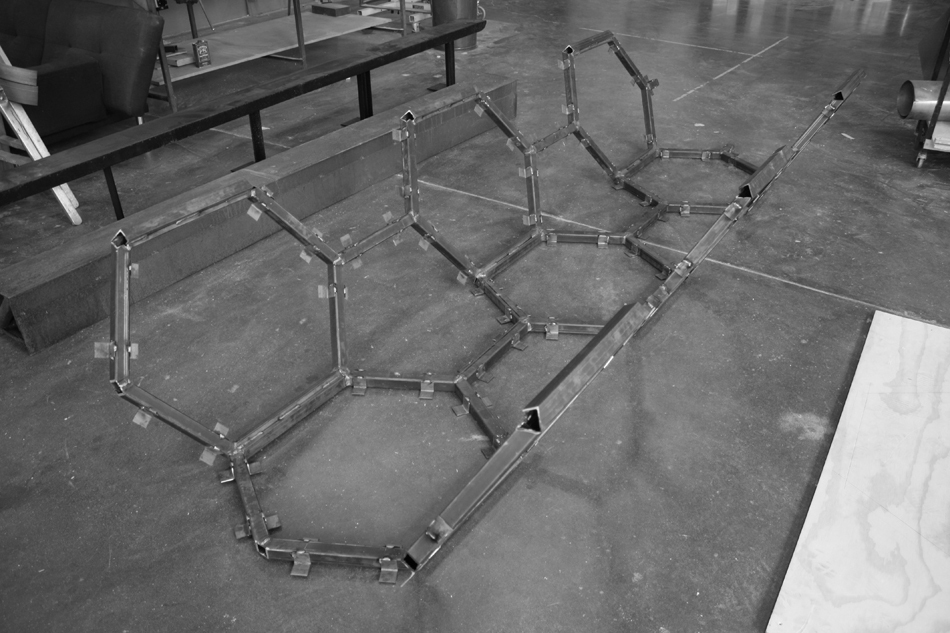

Complete portions of tower
Complete portions of tower
