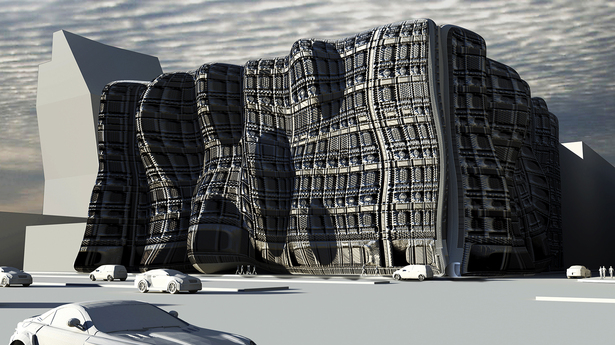

PERSPECTIVE
PERSPECTIVE
6 more images  ↓

Embellished Facades & Missplaced envelopes

Case Study: Edificio Somisa, Buenos Aires, Argentina

Volume and Surface, or container and envelope are the two architectural variables that we will investigate in this project, but instead of looking at the tight fit of the envelope towards a volume, We will treat them as separate elements, by misplacing, enlarging and re-folding the outer surface. By working with the facades of the given Case Studies We will re-design the volumes as a way to rethink the relationship between the envelope and the volume of a building.

The headquarters building of SOMISA is recognized as the first building of Argentina made entirely of steel, and for being the first worldwide fully welded.

Our interest is to represent the linear, steel, glazed and lightness in the existing facade to more curvy, concrete, ornament and heavy facade as a way to apply an extreme contrast looking for a greater architectural effect on the new surface.

Process: Starting by unfold the two and only sides of the building (Somisa building) and flatten it to reform & remap the facade’s elements to get a change of 2D depth of the elevation into 2.5D to provide new idea for surface geometry.


 Read more

Status: School Project
Location: Delancey St., Lower Manhattan, NY
Additional Credits: Design collaboration with Kevin Wu

Instructor: Florencia Pita
fpmod

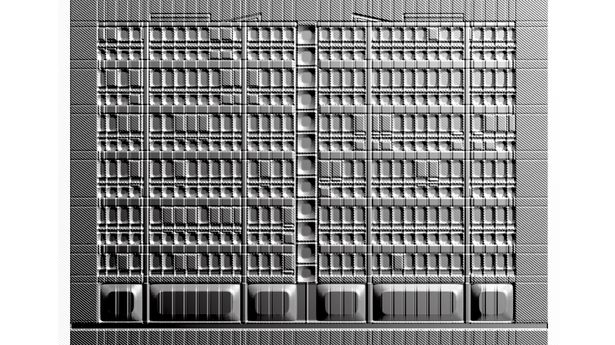

2D FLATTEN
2D FLATTEN

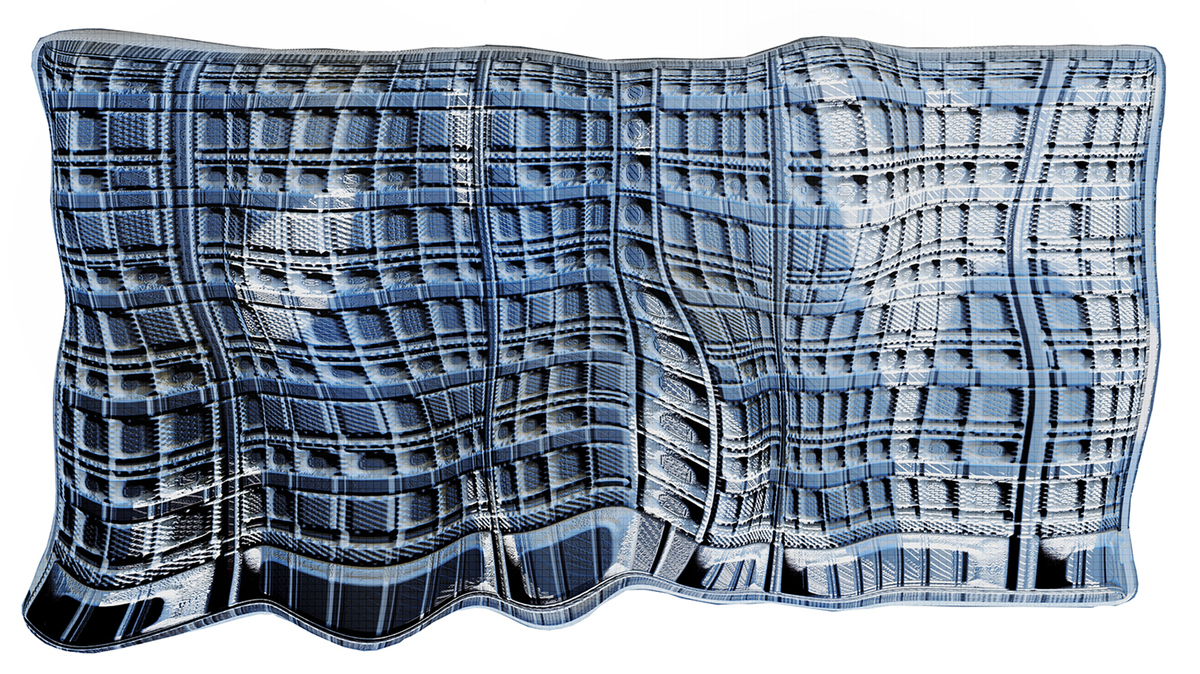

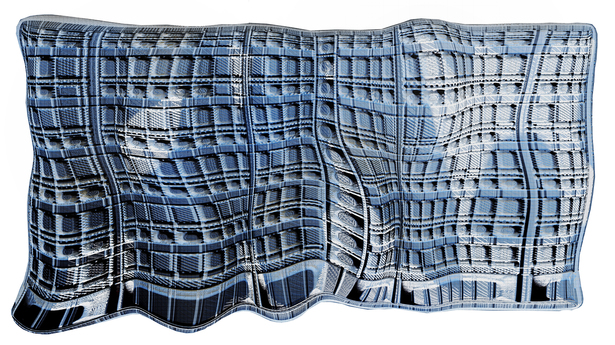

REMAPPING
REMAPPING

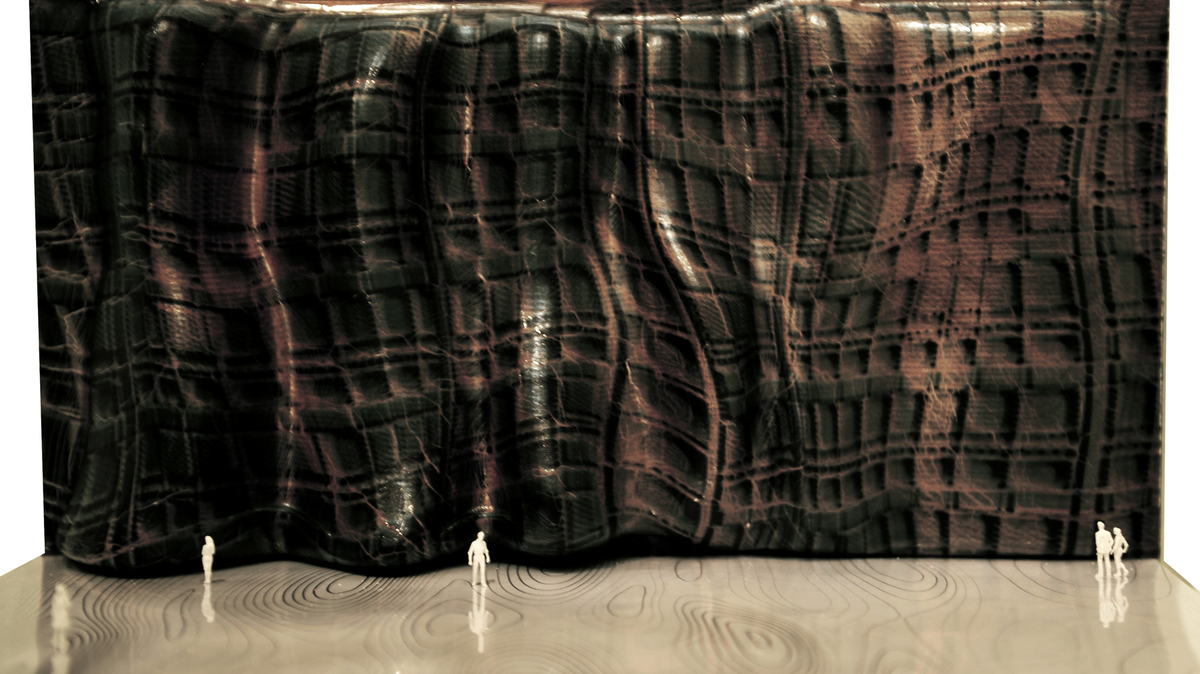

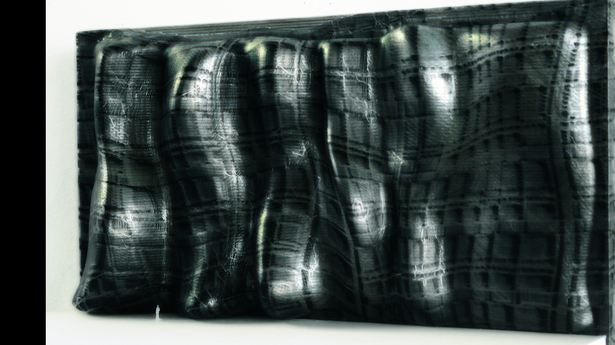

FACADE MODEL
FACADE MODEL
FACADE MODEL
FACADE MODEL

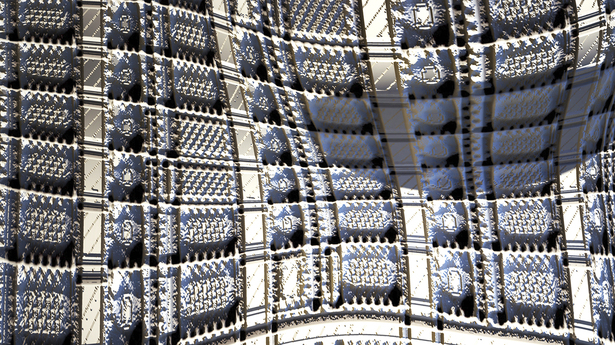

FACADE DETAILS
FACADE DETAILS

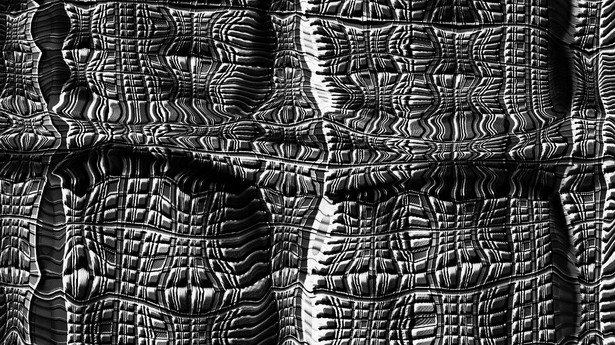

EMPHASIS DETAIL
EMPHASIS DETAIL
