LOTT Clean Water Alliance

The Project

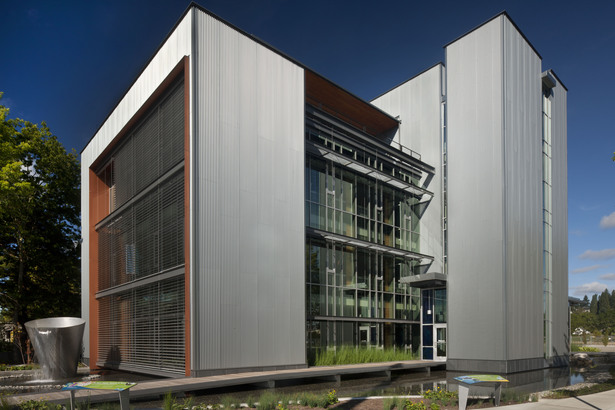

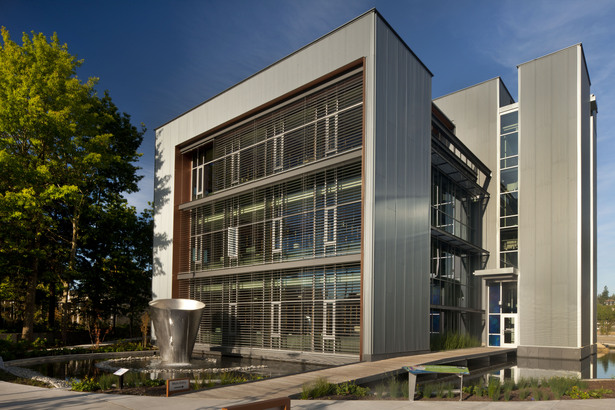

The new LOTT Water Alliance Center in Olympia, WA is a $13.5-million, 32,500-square-foot, LEED Platinum certified facility, designed by Miller Hull Partnership of Seattle. This innovative new facility treats wastewater for more than 85,000 residents that live in Lacey, Olympia, Turnwater, and Thurston counties ("LOTT"). The LOTT Alliance Regional Services Center not only treats water, but harvests energy from the water-treatment process, and educates the public on water conservation. Reclaimed or "treated" water is returned to the community to use for irrigation as well as industrial and manufacturing use.

This project was a winner of the 2010 AIA Committee on the Environment (COTE) Awards, which honors excellence in sustainable design.



The Challenge
Miller Hull, had the mission of creating a new four-story regional services facility to house administrative offices, an emergency operations center, boardroom, and an education center that would complement its surroundings.

The team aimed to design a facility that would actively engage the public, setting it apart from traditional wastewater treatment plants that are separated from their communities. The architectural team was looking for shading solutions to meet multiple needs: 1) to control daylight entering the workspace on the western elevation of the building, and 2) to manage thermal heat gain on the southern elevation, while maintaining outward visibility.

The Solution
Hunter Douglas Contract Solar Control provided MakroBlind™ Louvered Shades to meet the daylighting goals of the project.

"The exterior and interior shades are motorized with a sophisticated control system that tracks the sun and has scheduling capabilities," said Matthew Craven, Territory Manager, Hunter Douglas Contract. "Each MakroBlind installed in the facility has sun sensors integrated into the product to manage daylight and solar heat gain. When the sunlight goes below a certain level, the blinds are retracted to provide greater visibility."

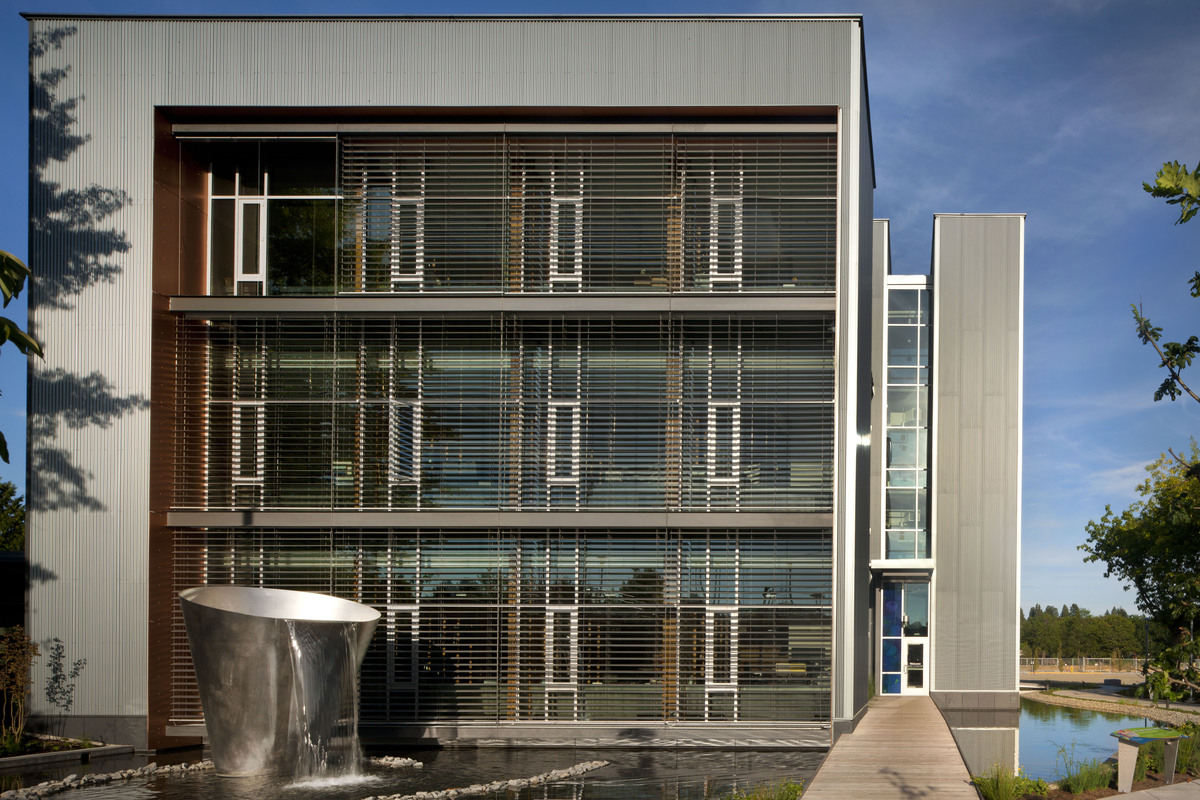

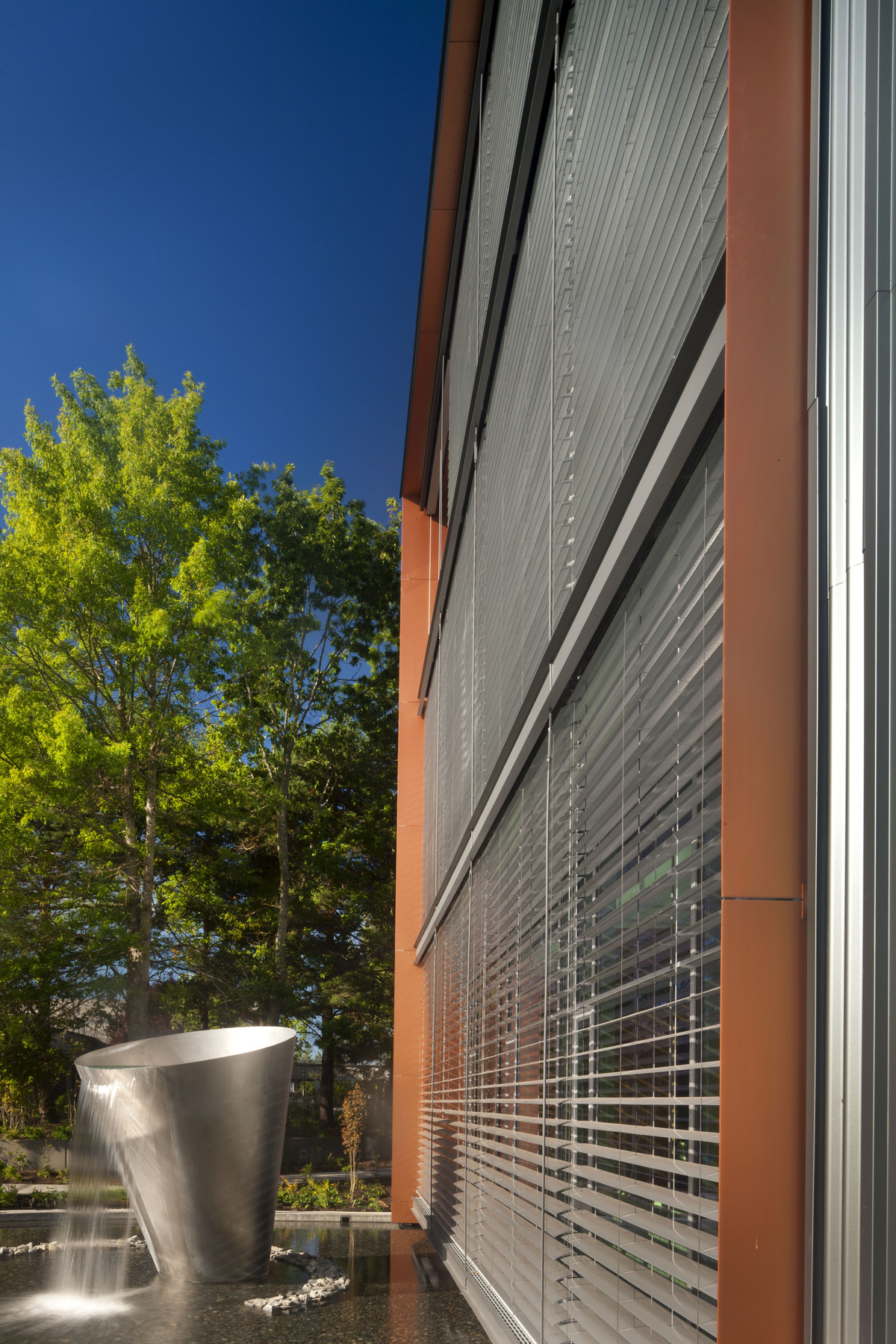

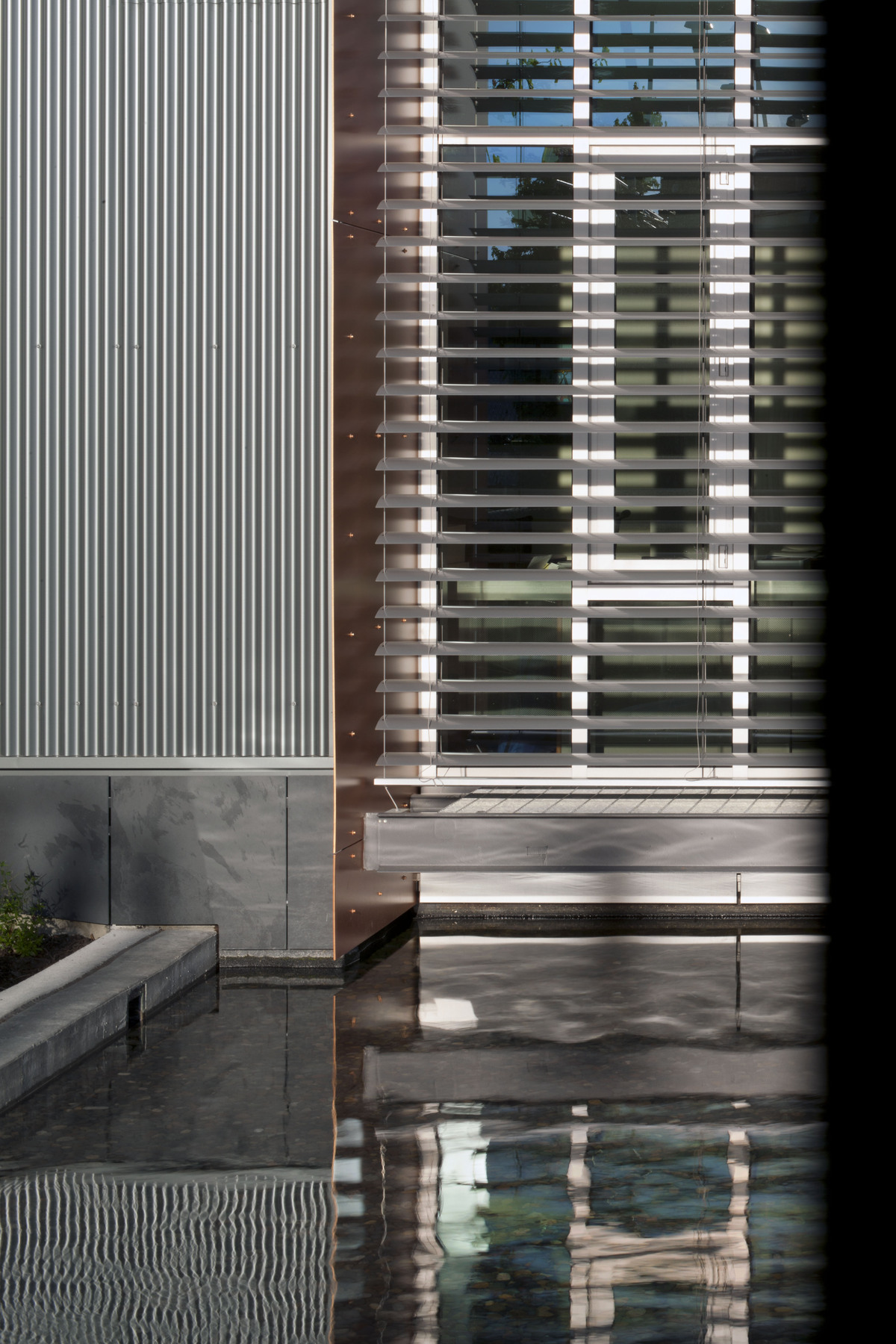

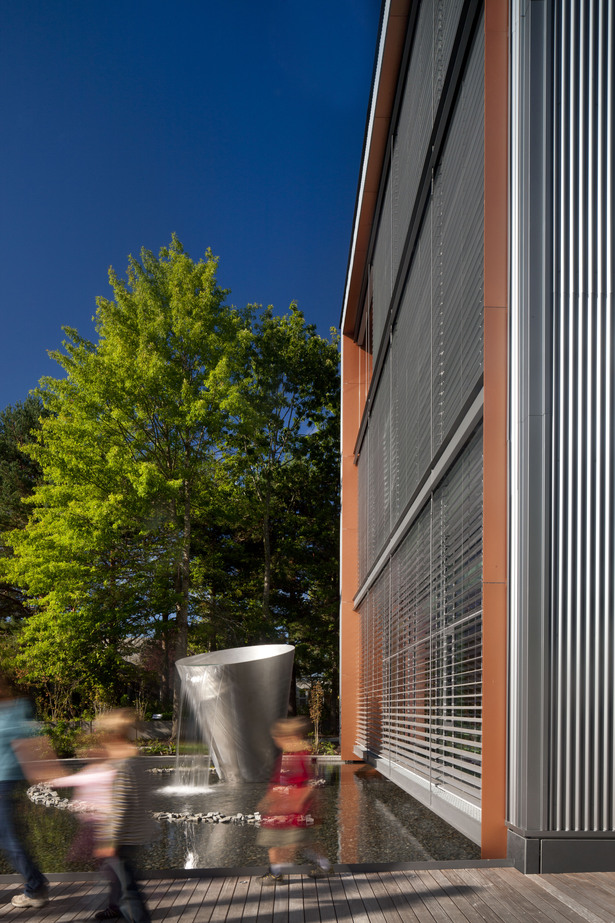

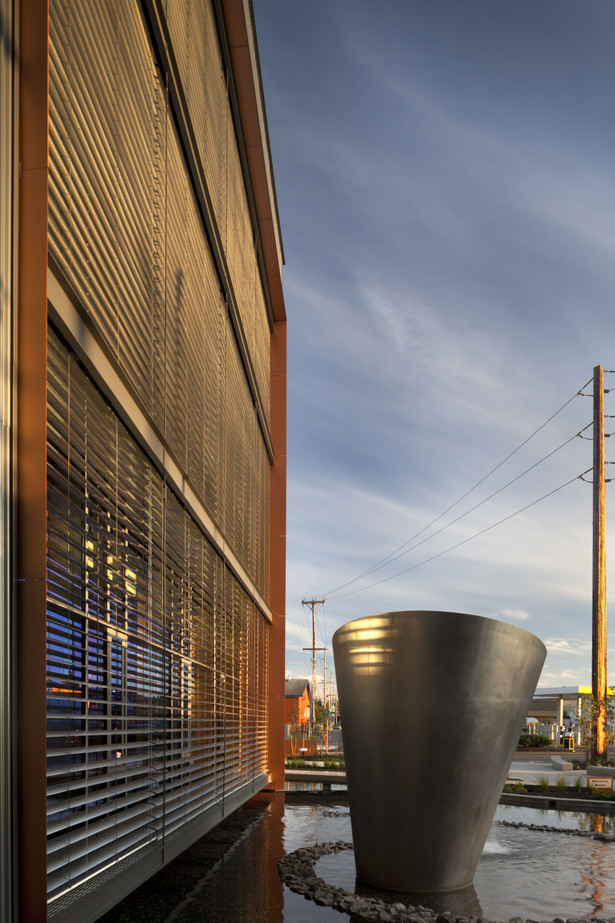

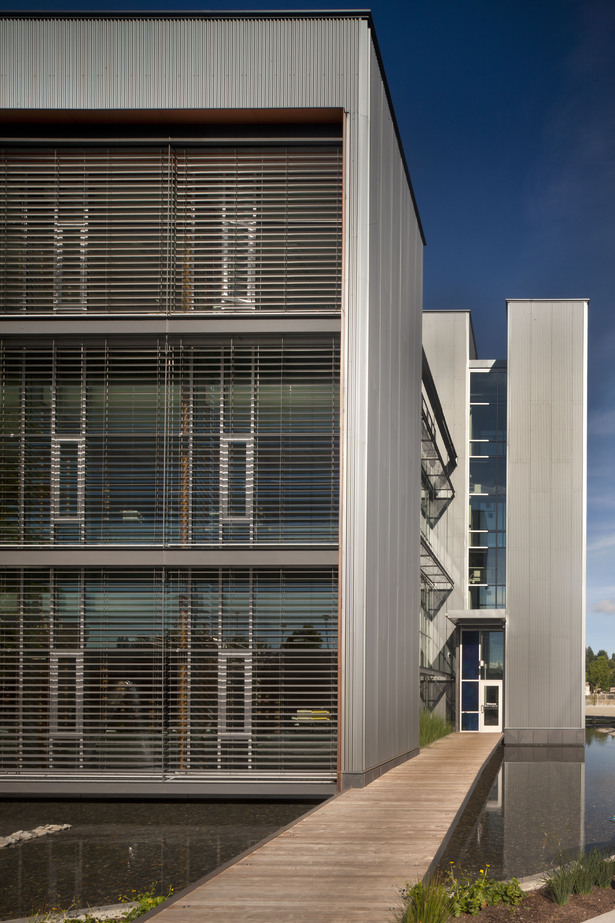

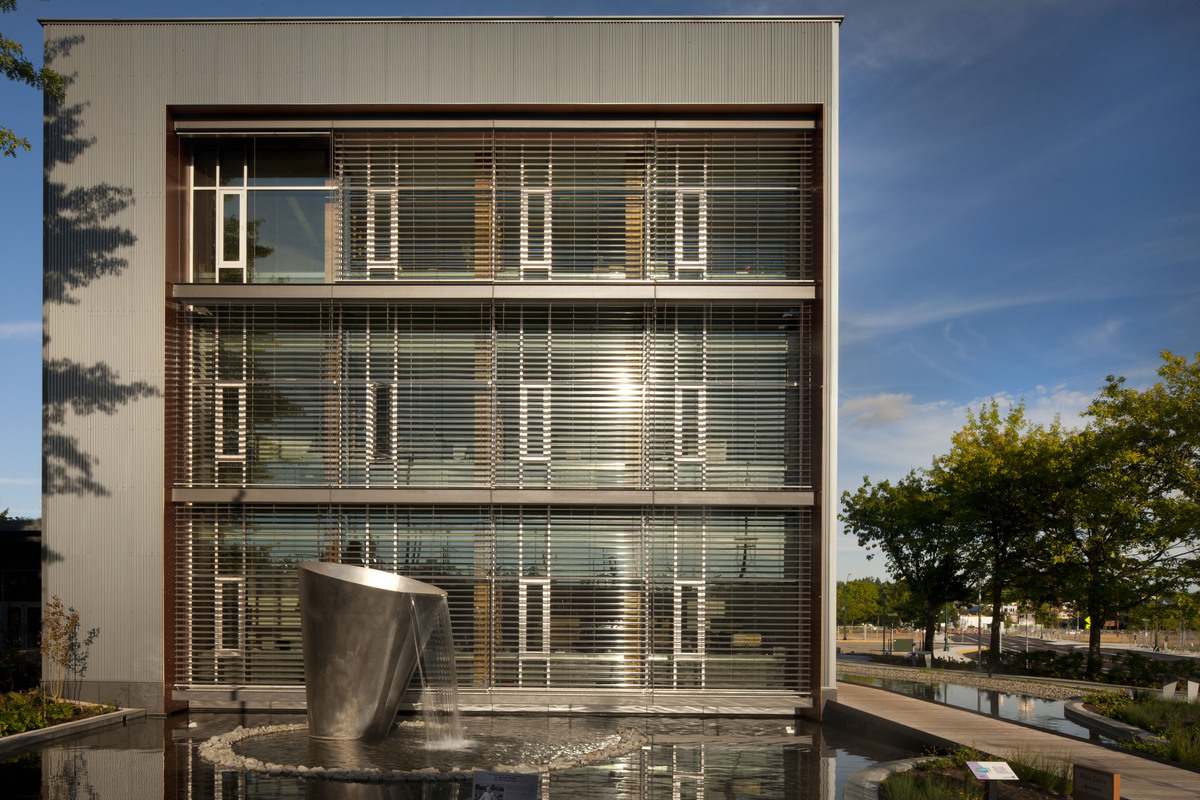

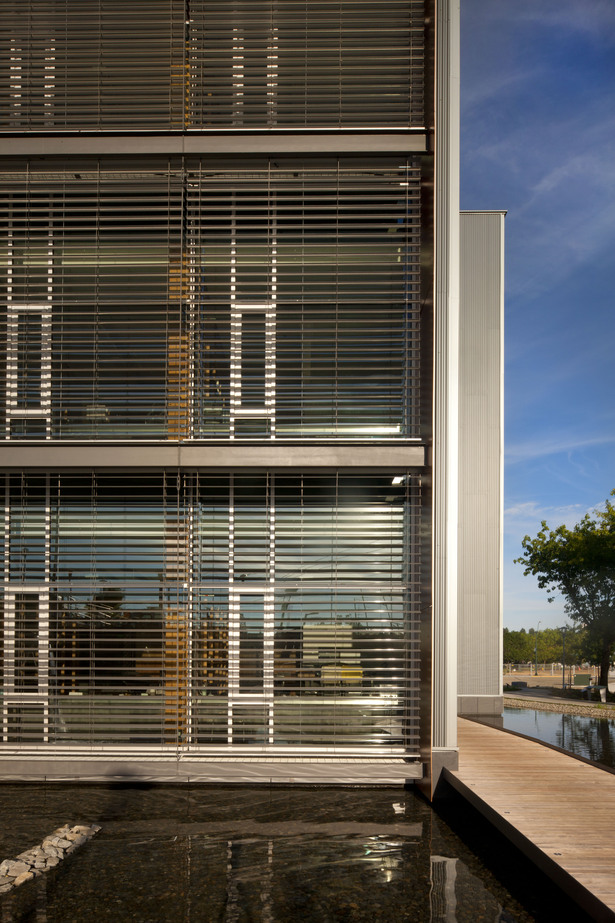

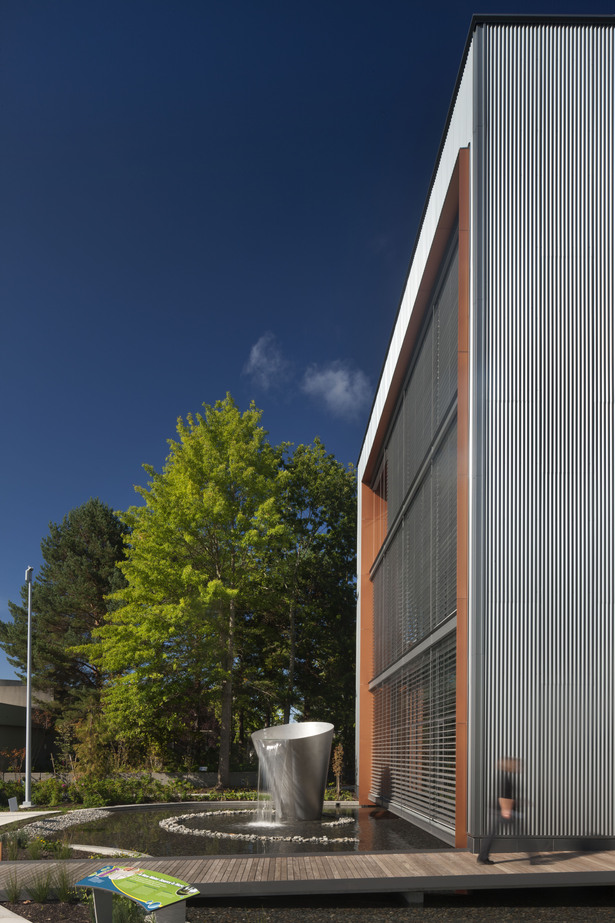

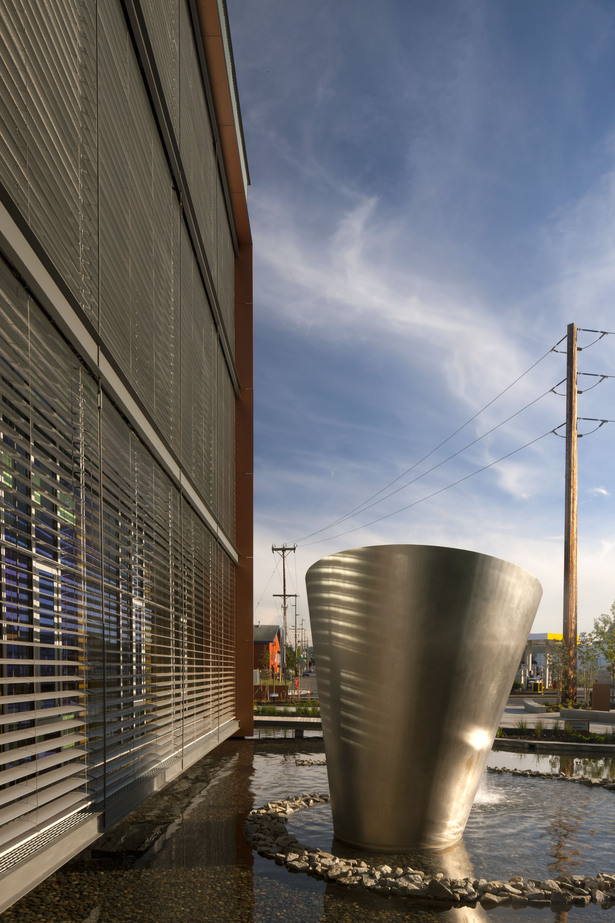

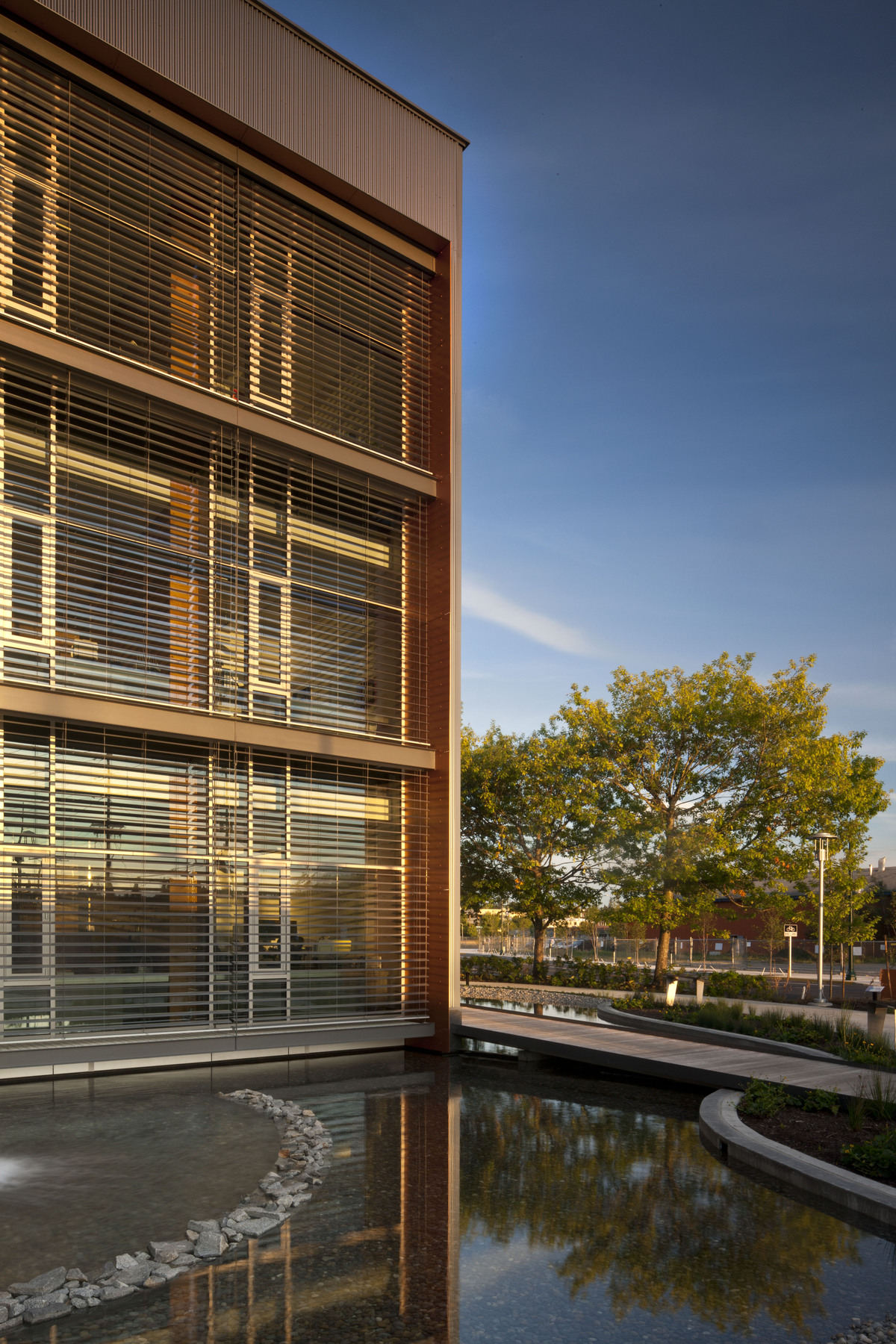

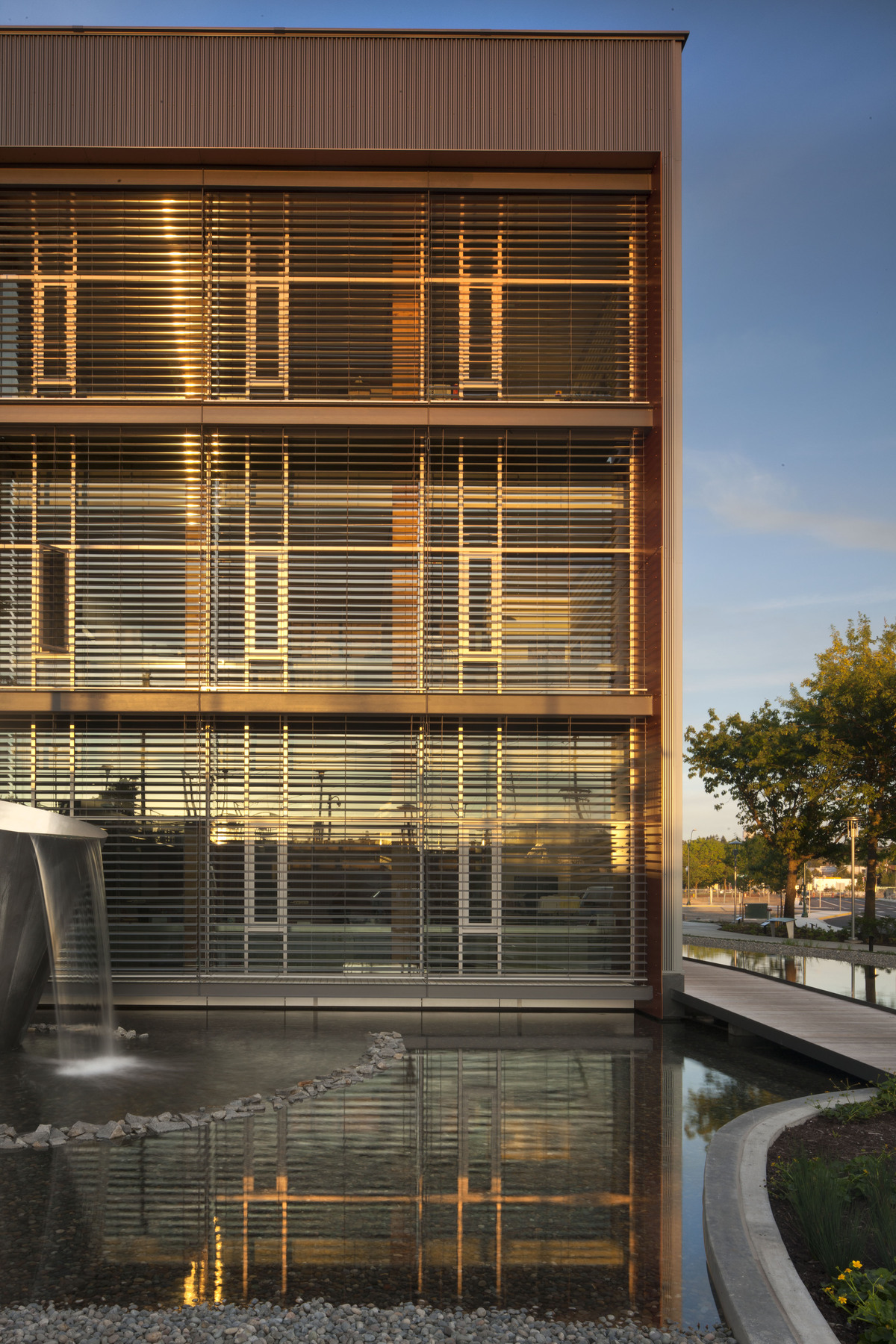

The 150 mm exterior shades cover the whole window opening to minimize solar heat gain, reducing the need for air conditioning. The 80 mm interior shades allow the light to enter deeper into the space, providing gradient lighting and reducing the need for artificial lighting. The shading applications, along with several other sustainable elements of the project, will result in an overall energy reduction of 50% over typical buildings, and significant cost savings over the facility’s lifetime.

For more information on this solar control solution, visit:

http://www.hunterdouglascontract.com/referenceprojects/article.jsp?pId=8a4383492d8ce184012da01bdb11002d


 Read more

Status: Built
Location: Olympia, WA, US
My Role: Hunter Douglas Contract provided Interior and Exterior Venetian Blinds
Additional Credits: Architect: Miller Hull Partnership LLP
