Residential New Construction 2

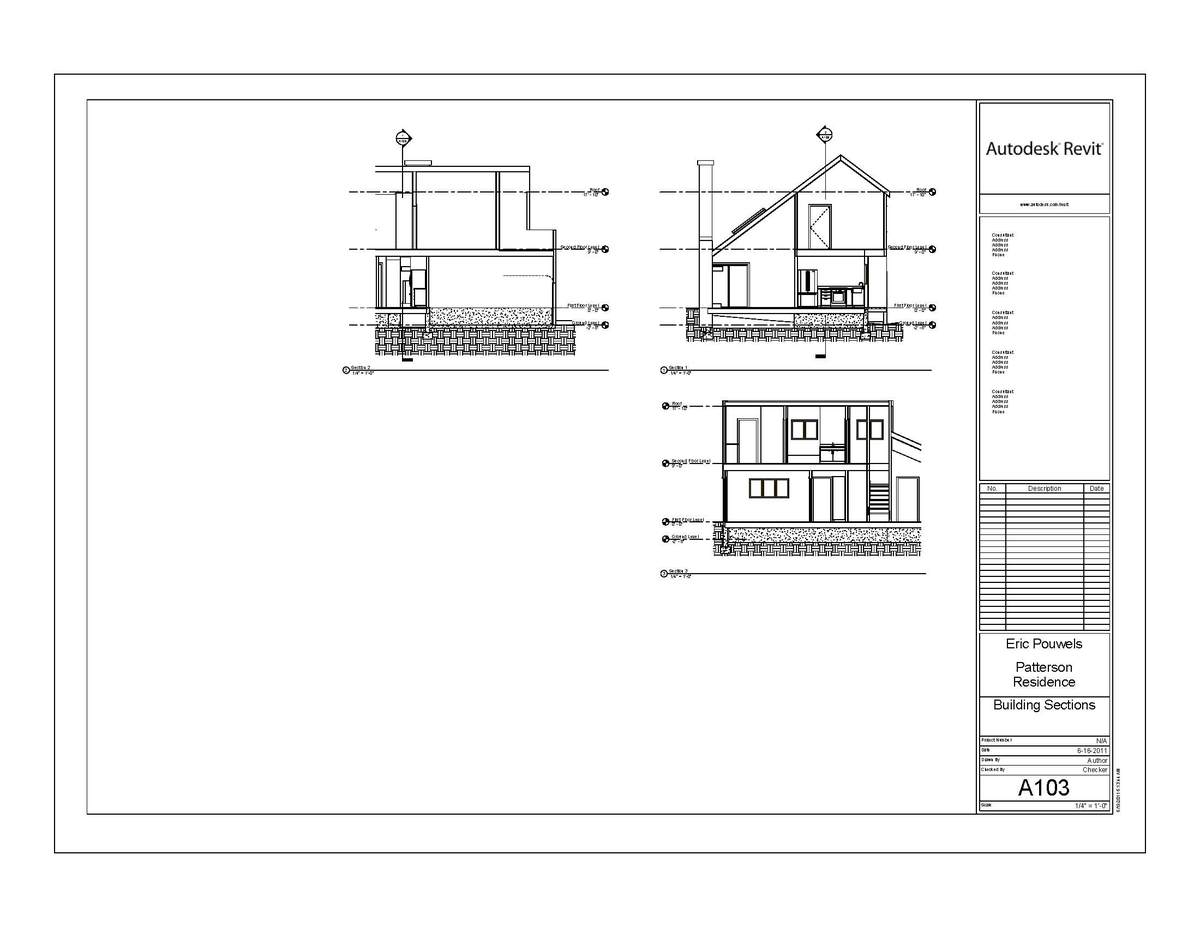

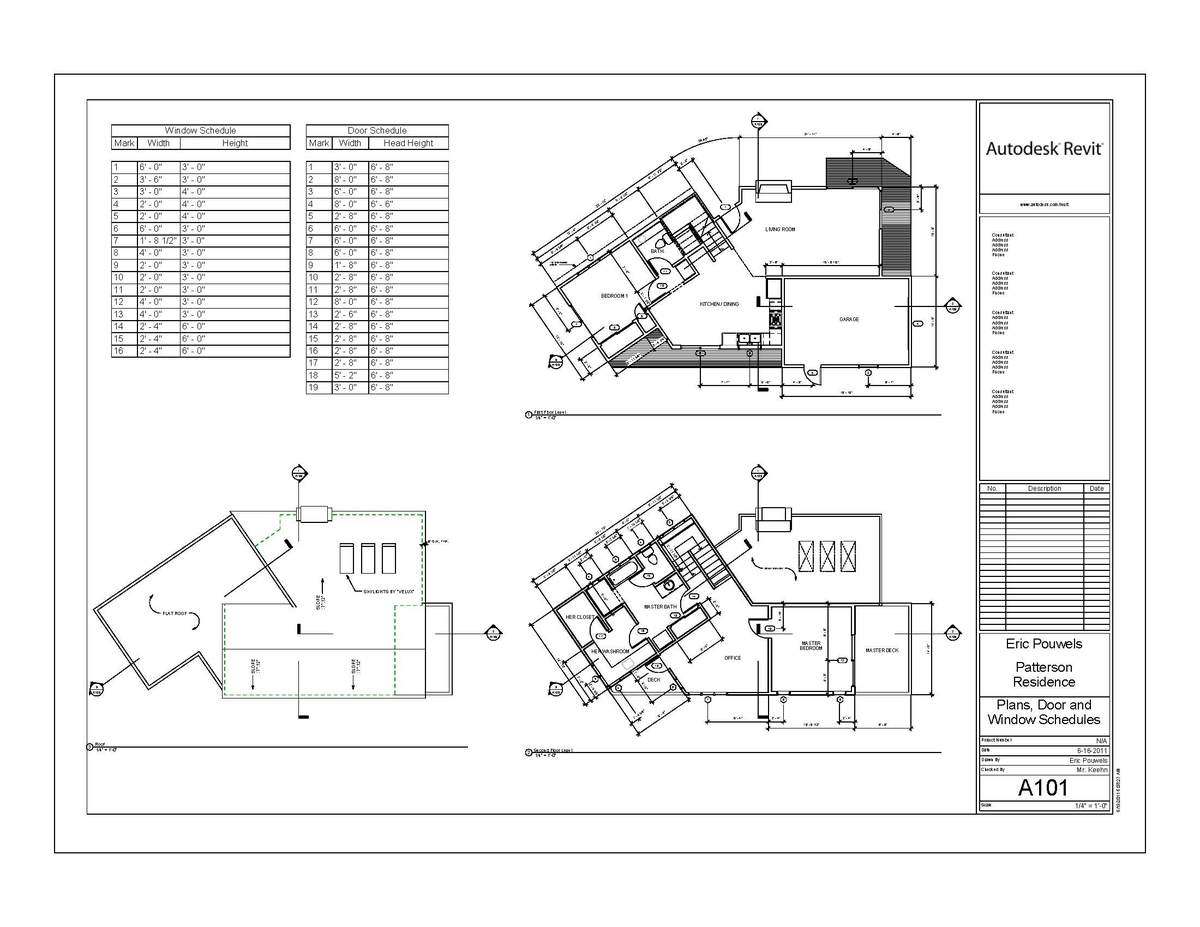

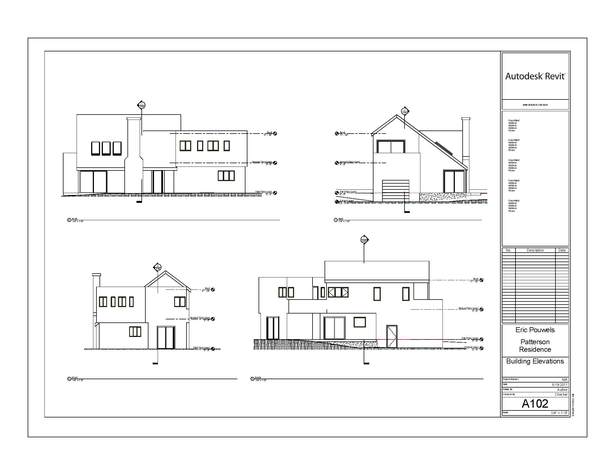

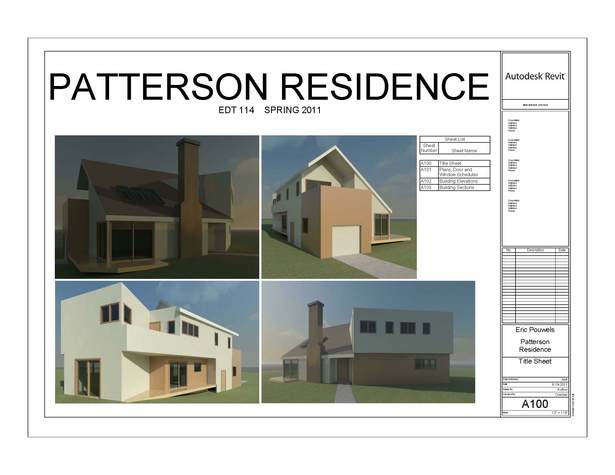

Creation of a Basic Construction Drawing set using Revit 2009, based off original construction drawings I had produced in 2004 using AutoCAD.  Project construction was completed in 2007, these Revit "revamped" CD's were completed in 2011.  Renderings on Cover page produced with Revit built in renderer.


 Read more

Status: Built
Location: San Clemente, CA
My Role: Head Draftsman (orignal drawings)
Additional Credits: Rob Patterson, Architect & owner of property
