Creation of plans & model based upon famed Villa NM in New York by UN Studio.

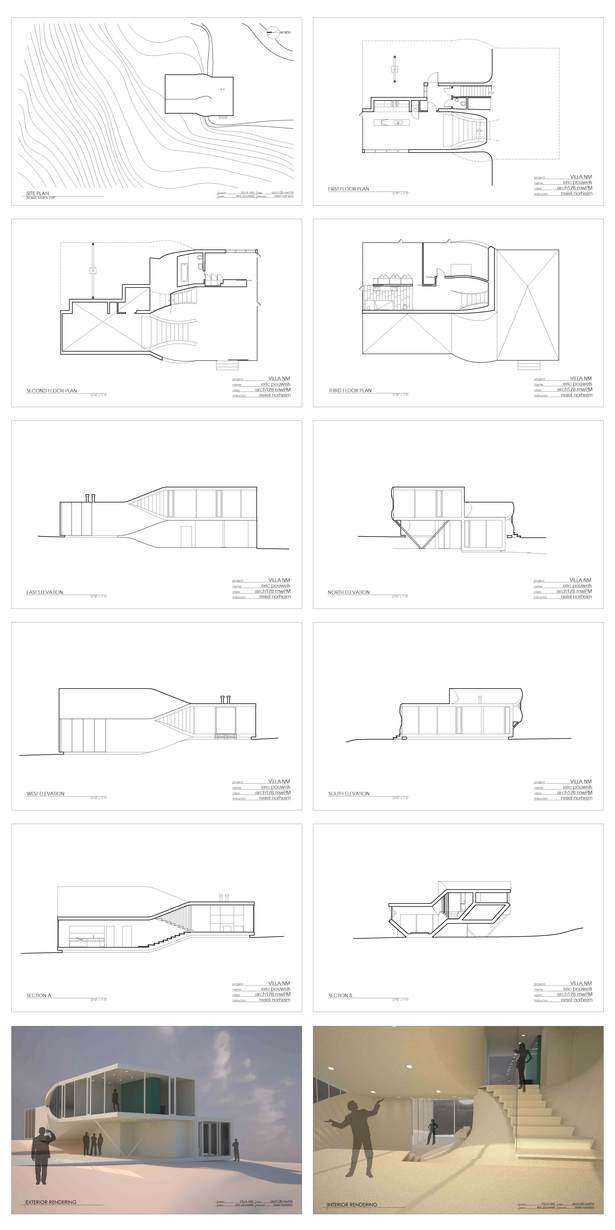

Using scans of existing plans & photo to create model of structure using Rhinoceros 4.0. Using model to create plans, elevations & sections using AutoCAD & Adobe Illustrator. Exterior & Interior rendering using Maxwell for Rhino and images modified using Adobe Photoshop.
Status: School Project
Location: Pasadena, CA, US
My Role: Drafter/Modeller/Renderer
Additional Credits: Pasadena City College Architecture Program, building design by UN Studio
