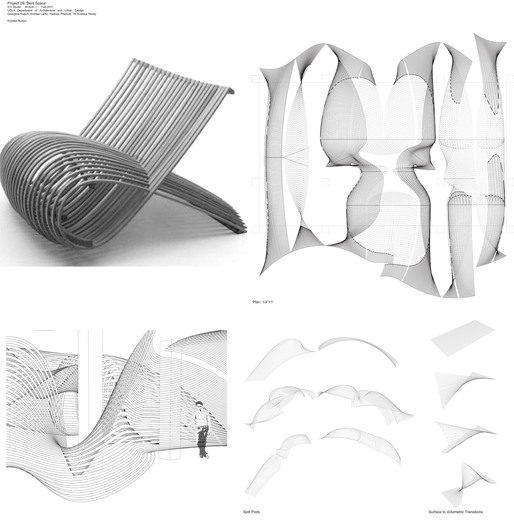

A recap on the last project Bent Space, an intervention in the main atrium of the board Art Center with the design of a performance-based object. One requirement to derive our initial material tectonics and fabrication process from a quick one week case study project (Eames LCW, DCW, Toy Animals, Aalto's Palmio Chair, Gehry's High Sticking Chair, Summers Lounge Chair, Pilessnig Providence Chair, Mollino's Tea Table etc.). A detail, a formal property, a certain bend, crease, notch, intersection

I was happily surprised to learn that my seaming project was selected to be exhibited in the Currents Best-Of exhibition staged at the end of each quarter. I'll post some photos of the work soon (yes, even behind on documenting my own work) but wanted to share a few quick drawings and photos from peers.

AUD 411: Final presentation | Derek Buell | M.Arch I 2014

Photos courtesy of UCLA AUD

Krysten Burton

READY SET GO

Finally, entering this current quarter, we now stand at 2 weeks into the 10 week curriculum (the quarter system is merciless). The first week of classes are so sweetly civilized, with clean desks, shiny studio floors, cheery students. I anticipate in two weeks a total devolution. This quarter is a structural studio, starting with a two week case study of classic structural projects

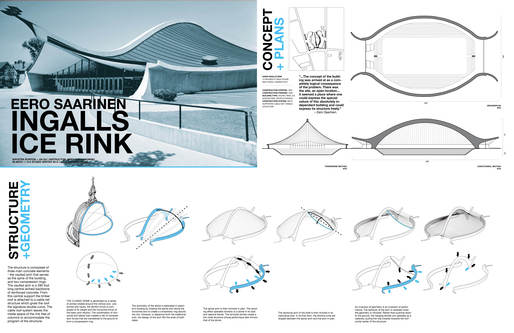

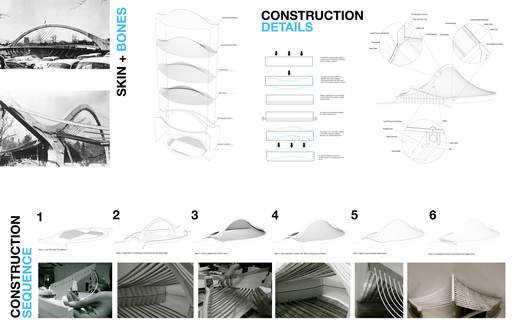

AUD 412 | Case Study: Eero Saarinen Ingall's Ice Rink | Krysten Rhae Burton & Jia Gu | M.Arch I 2014

My teammate and myself were assigned Eero Saarinen's Ingall's Ice Rink, a shell-like structure situated in Yale University campus grounds, used for all those racy, icy sports I am not terribly fond of.  From the onset, I tried contacting a few Yale offices to collect original drawings or plans. One conversation with a person at the Architecture Department went something like this:

Me: Hello, I'm a graduate student at UCLA doing a case study on Saarinen's Ingalls Ice Rink and I was wondering if you could point me in the direction of someone who might know more about the construction process of the building ...

Yale: This is the Yale Architecture Department.

Me: Yes, I know.

Yale: That has nothing to do with architecture.

So we didn't get original master plans but we got some excellent information out of our own deduction and research. What we discovered is that Saarinen's building is an extremely elegant solution to program requiring a space free of columns yet needed to span up to 300 feet to accomodate the rink. The structure is composed of three main concrete elements - the vaulted arch that serves as the spine of the building, and two compression rings. The vaulted arch is a 290 foot long central arched backbone of reinforced concrete. From this central support the timber roof is attached to a cable net structure which gives the roof the signature double curve. Saarinen's solution is to essentially cap a dome over the entire space.

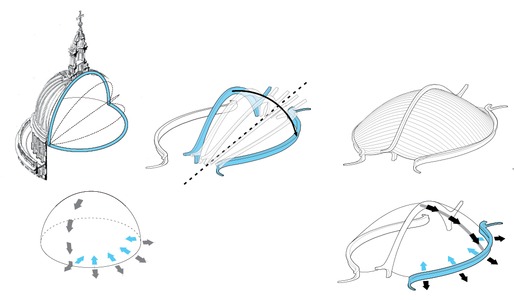

The classic dome is generated by a series of arches rotated around the vertical axis. Like arches and vaults, the dome’s thrust is composed of its weight and the horizontal thrust of the basic arch section. The combination of horizontal and lateral load creates a net of compression forces that are transferred to the ground to form a compression ring [diagram 1]. The symmetry of the dome is replicated in saarinen’s buiding by rotating the spinal arch along the horizontal axis to create a compresion ring around the rink. However, in departure from the traditional arch, the design of the arch lifts the ends of both sides [diagram 2]. The spinal arch is then mirrored in plan. The resulting effect operates similarly to a dome in its load and reactive forces. The revolved arches create a thin-shell structure whose performace also mimics that of the dome [diagram 3]

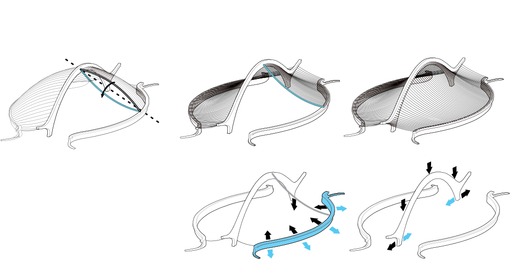

The sectional arch of the shell is then nirrored in its transverse axis. In its final form, the tensilve units are draped between the spinal arch and the arch in plan [diagram 4]. An inversion of geometry is an inversion of performance. The behavior of the arch is reversed when the geometry is mirrored. Rather than pushing down to the ground, the hanging tensile unit operates as a catenary, pulling the ring inwards towards the horizontal center of the structure [diagram 5].

So although Saarinen's building originated with the principles of the dome, a series of moves later produces what's the Whale, fond nickname for the curved lifted structure.
