Antonio Robledo

Antonio Robledo

Alpha, New Jersey, USA

anchor

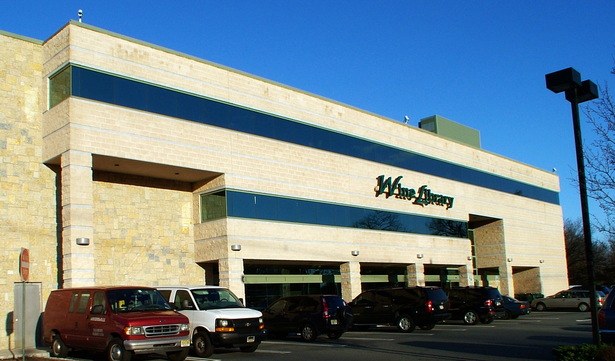

LEFT SIDE VIEW - PARTIAL FRONT ELEVATION
LEFT SIDE VIEW - PARTIAL FRONT ELEVATION
5 more images  ↓

THE WINE LIBRARY

NEW LIQUOR RETAIL STORE WITH MANAGING OFFICES ON THE THIRD FLOOR

  • MIXED-USE, 3-STORY STEEL FRAME AND MASONRY BUILDING
  • RETAIL FLOOR AREA ON 1st AND 2nd FLOOR = 16, 952 SQ. FT.
  • OFFICE SPACE AREA ON 3rd FLOOR = 10, 590 SQ. FT.
  • BASEMENT STORAGE AREA = 8, 284 SQ. FT.
  • TOTAL GROSS AREA 35, 826 SQ. FT.
  • FREIGHT AND PASSENGER ELEVATORS

Read more

Status: Built
Location: Springfield, NJ, US
My Role: Project Manager
Additional Credits: The Chapman Studio, PC

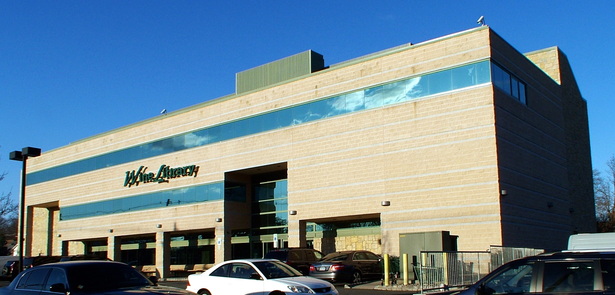

RIGHT SIDE VIEW - FRONT ELEVATION
RIGHT SIDE VIEW - FRONT ELEVATION

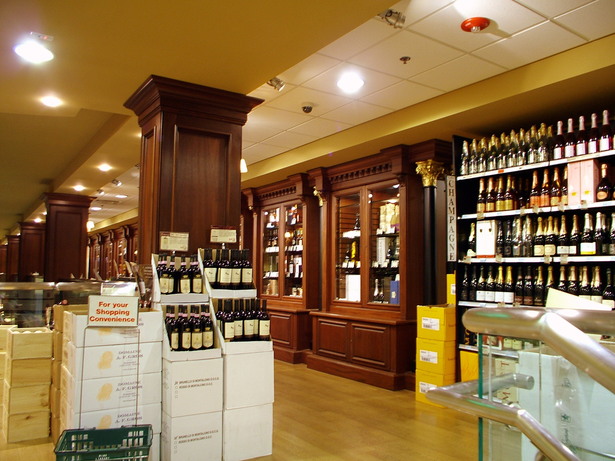

INTERIOR VIEW AT TOP OF STAIR ON MEZZANINE LEVEL
INTERIOR VIEW AT TOP OF STAIR ON MEZZANINE LEVEL

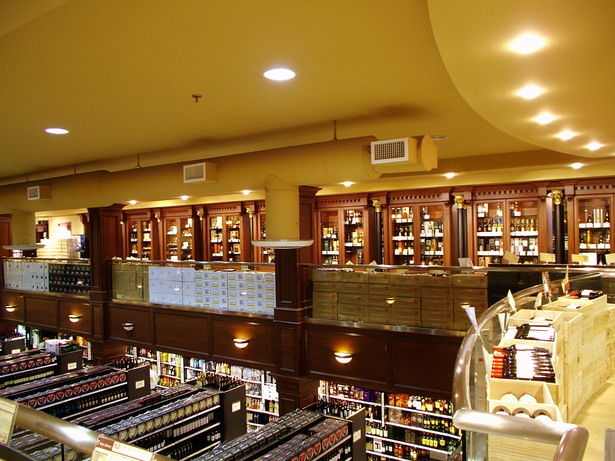

INTERIOR VIEW AT MEZZANINE LEVEL
INTERIOR VIEW AT MEZZANINE LEVEL

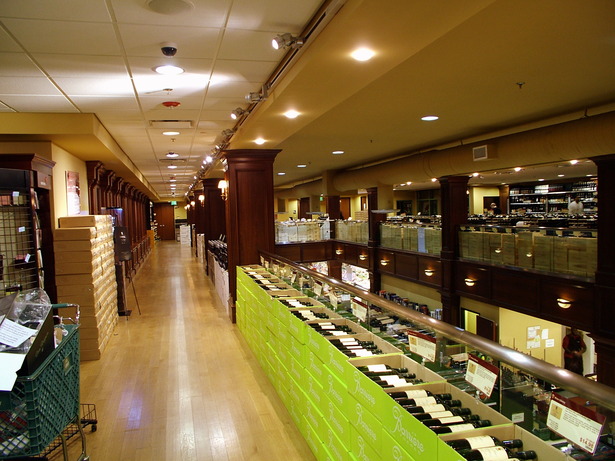

MEZZANINE LEVEL DISPLAY CORRIDOR
MEZZANINE LEVEL DISPLAY CORRIDOR

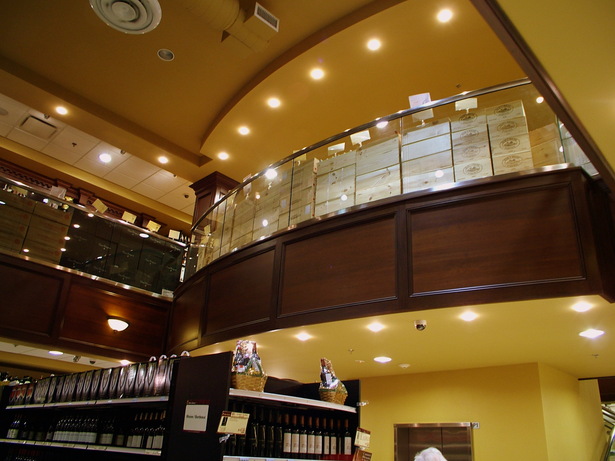

MEZZANINE LEVEL - ELEVATOR BALCONY
MEZZANINE LEVEL - ELEVATOR BALCONY
